Maintenance 270
Removing the Feed Roller Unit in the Standard 250-Sheet
Tray

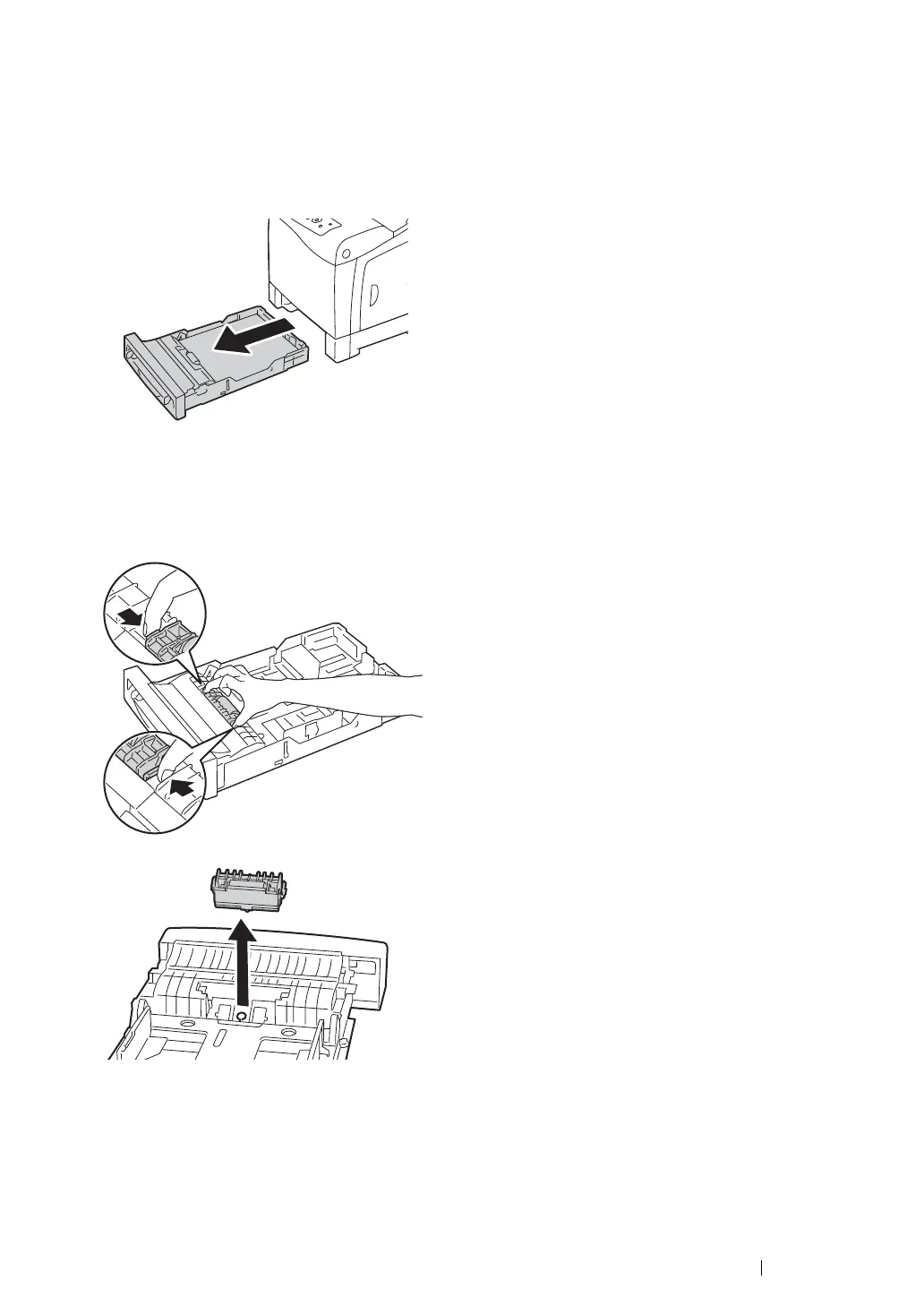

1 Pull the standard 250-sheet tray out of the printer about 200 mm. Hold the standard 250-sheet
tray with both hands, and remove it from the printer.
NOTE:
• Ensure that you remove all the paper from the standard 250-sheet tray before removing the feed roller
unit.
2 Holding the feed roller tabs with your fingers, pull the feed roller unit out of the groove in the axle.
To Next Page
