System expansions
Installing the reader/sensor
b
1
1
a

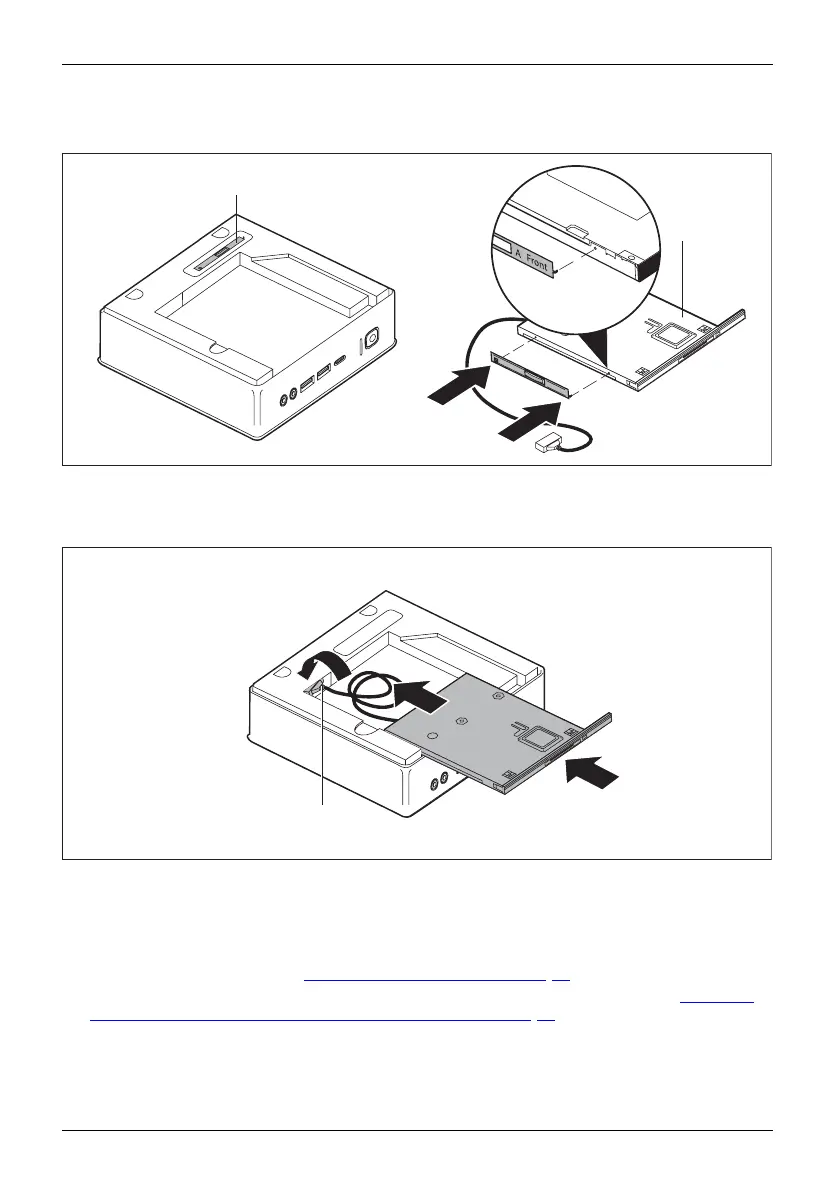

► Remove the drive plate (a) from the drive cage.
► Attach the drive plate to the reader/sensor (b) as shown (1). The mark "Front" (Front
side) on the drive cover plate must point in front as illustrated.
c
3
2
4
► Carefully slide the reader/sensor partly into the drive bay in the d irection of the arrow (2).
► Fully
feed the reader/sensor cable (c) through the opening in the drive
cage (
3) into the interior of the casing.
► Slide the reader/ sensor fully into the drive bay (4). Take care that no cables get jammed.
► Remo
ve the drive cage (see "
Removing the drive cage", Page 68).
► Attach t he reader/sensor lead to the motherboard (see graphic on s lots in Section "
Overview
of th e installation openings and drives in your device", Page 62).
86 Fujitsu
