System expansio ns
Installing the drive cage
Drivecage
1
2
1
1
1
a
b
b
a
a
a

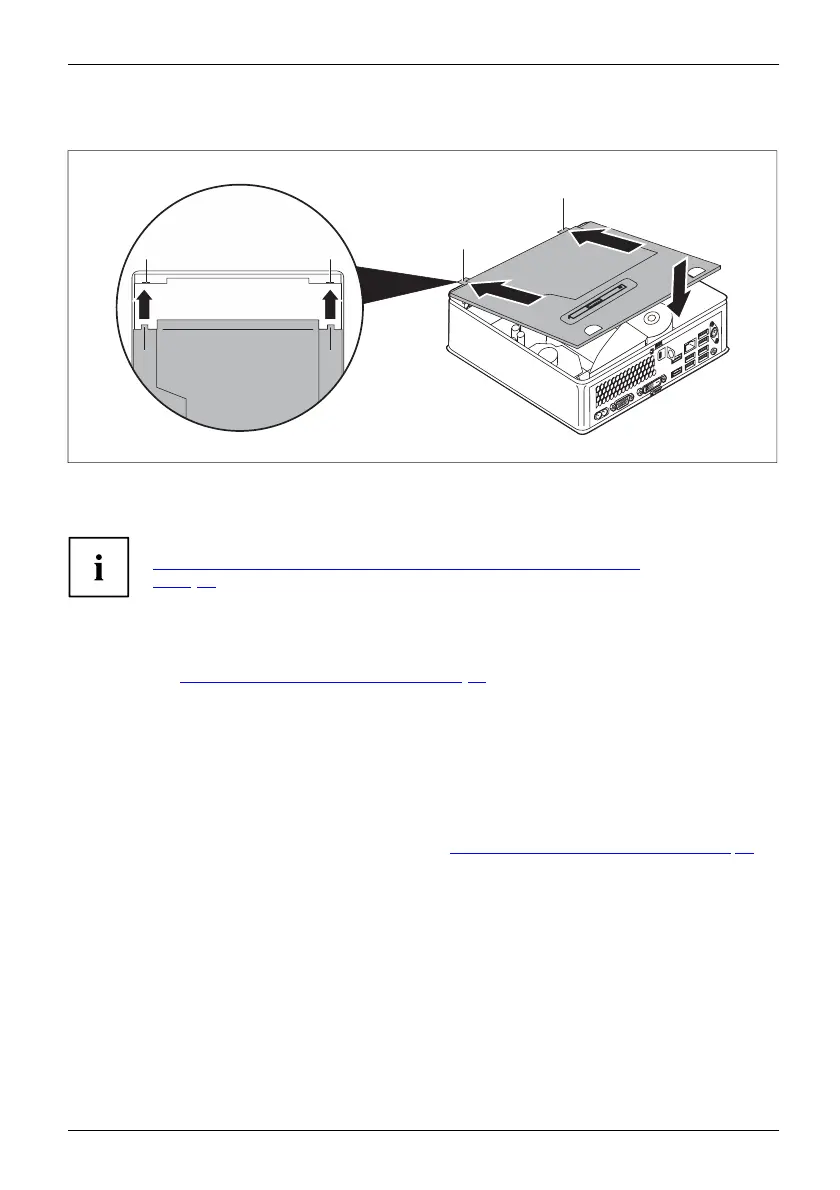

► Insert the guides (a) on the drive cage into the corresponding openings on
the casing (b) in the direction of the arrow (1).
You can find information on pin allocation on the motherboard in Section
"
Overvie w of the installation openings and drives in your device",
Page 62 and in your motherboard manual.
► Ta ke the drive cage out of the casing (2). Take care that no cables get jammed.
► If you do not wa
nt to remove or install any other components, reattach the top casing
cover (see "
S
ecuring the top casing cover", Page 67).
Installing and removing an optical drive
(device-dependent)
Installing the optical drive
•Thetopca
sing cover has been removed (refer to "
Removing the casing top cover", Page 66).
If you have already installed a blanking plate or a SmartCard reader/palm sensor prior to installing
the drive, carry out the corresponding steps in the relevant sub-section of this chapter first.
Fujitsu 69
