System expansio ns
Installing the M.2 module
• The top casing cover and drive cage have been removed (see "Removing the casing
top cover", Page 66 and "Removi ng th e drive cage", Page 68).
• The fan has been removed (see "
Removing the fan", Page 92).
b
a
1
2
a

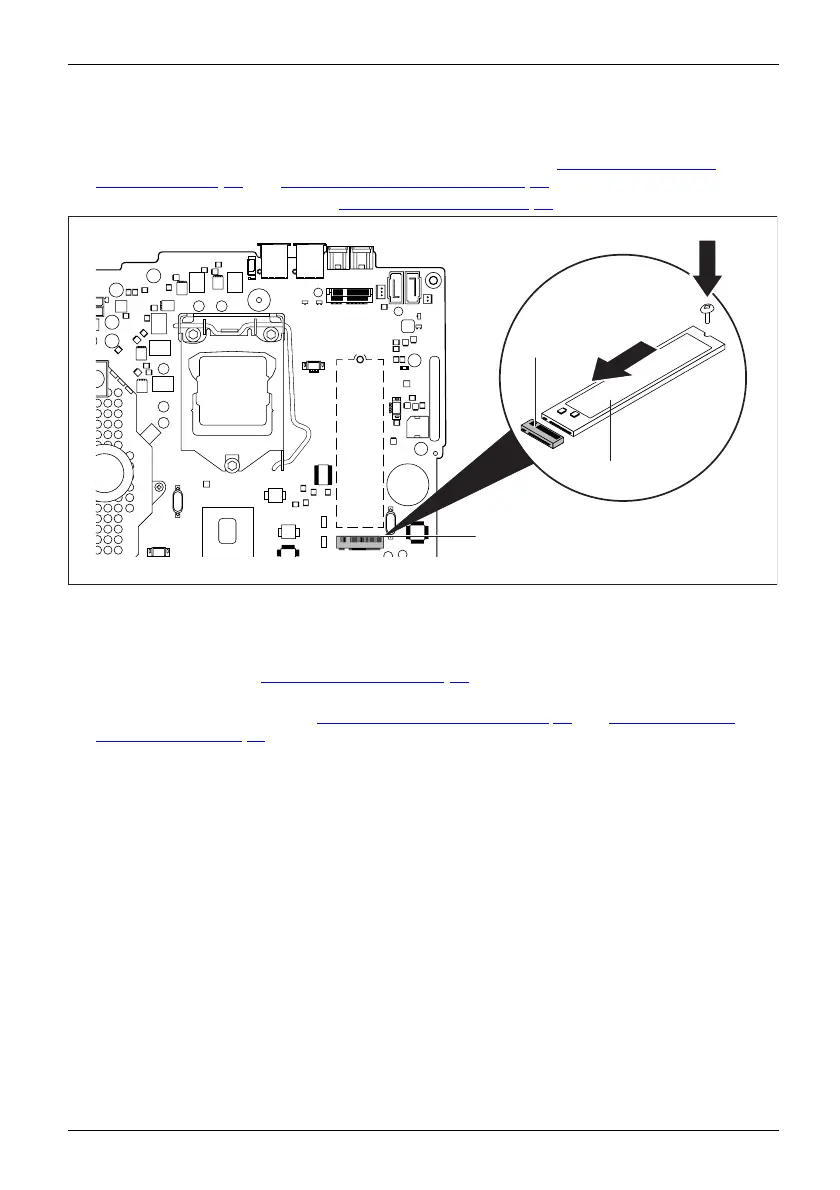

► Insert the M.2 module (b) at a slight angle in t he direction of the a rrow (1)
into the slot (a) on the motherboard.
► Secure the M.2 module onto the motherboard with the screw (2).
► Reinstall the fan (see "
Install ing the fan", Page 93).
► If you do not want to remove or install any other components, replace the drive cage
and the top casi ng cover (see "
Installing the drive cage ", Page 69 and "Securing th e top
casing cover", Page 67). Take care that no cables or leads get jammed.
Fujitsu 95
