Note -
Be careful because work on the top cover section is done high off the ground. Never
do anything dangerous such as putting your foot on the rack, which would be very dangerous.
Note -
Be careful when removing the side plate because it weighs about 13 kg.
㩿㪈㪀
㩿㪉㪀
㩿㪊㪀
㩿㪋㪀
FRONT
Number in
figure
Description
1M12 screw
2Top cover
3Side plate
4Screw
b. Remove the 10 screws securing the side plate, and remove the side plate.

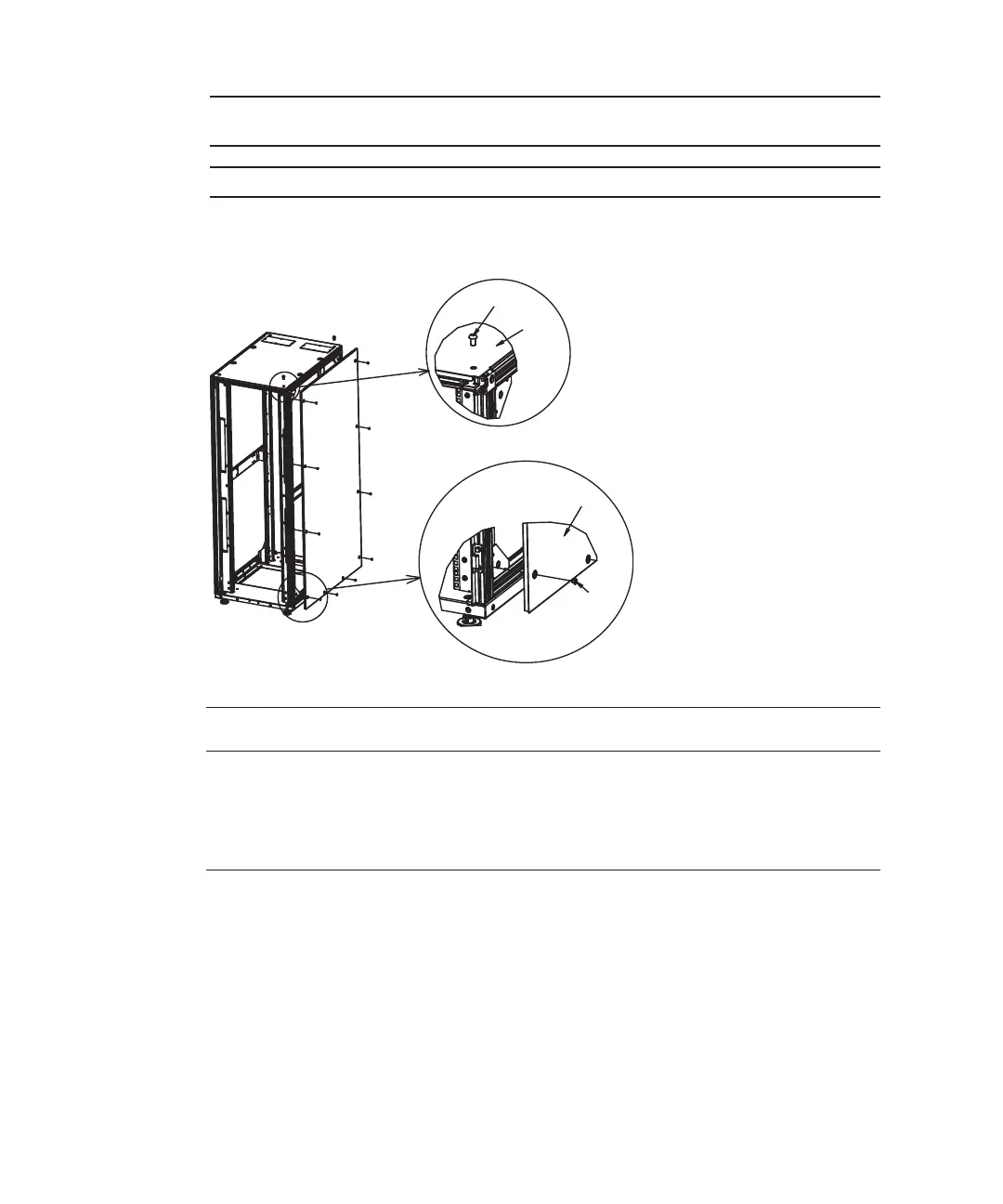

Figure 3-18
Removing the side plate
5.
Attach M6 core spring nuts to the front and rear of expansion rack 1.
a. Attach two M6 core spring nuts in the lower part of the vertical column (right
side as
viewed from the front) on the connecting side at the front of the rack.
b. Attach two M6 core spring nuts in the lower part of the vertical column (left
side as viewed from the rear) on the connecting side at the rear of the rack.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 201590
