Fujitsu M10 - Page 105

㪌㪇 㪌㪇
㪏
㪏
㩿㪉㪀
㩿㪈㪀
㩿㪉㪀
㩿㪈㪀㩷
FRONT
REAR
Number in
figure
Description
1M6 core spring nut
2 Vertical column
Note -
Check whether the screw section of the core spring nuts can be seen from outside of
the groove.
B
D
C
A
A
BA
NG

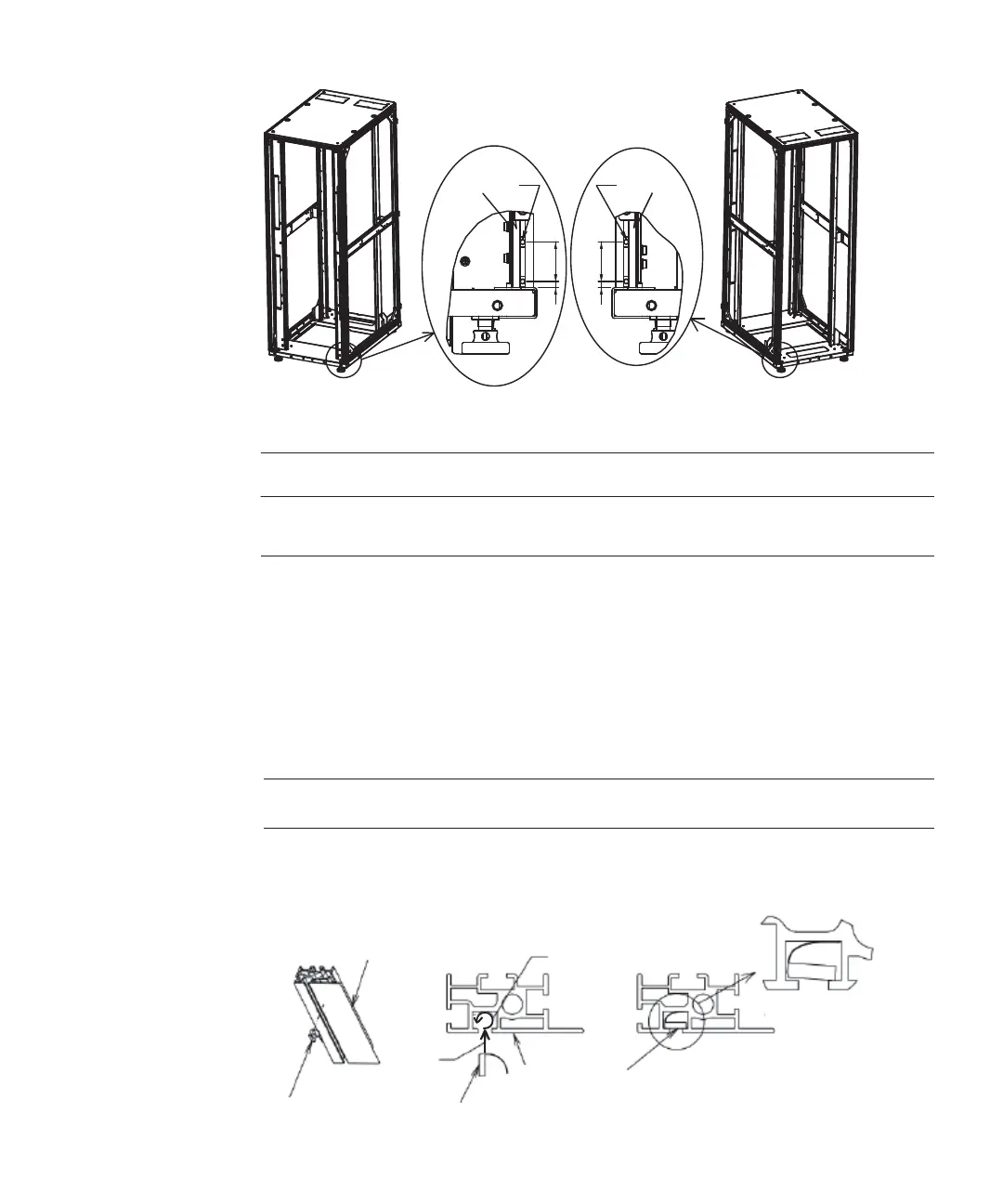

Figure 3-19
Attaching core spring nuts
■
Procedure for attaching core spring nuts
Perform work by referring to Figure 3-20.
a. Insert core spring nut A in direction C into the groove of vertical column B.
Then, rotate it in direction D.
Use the tip of a pen or a fine flat-bladed screwdriver, etc. to help you do
this.
b. Confirm that the core spring nut is not inclined in the groove of the aluminum
frame.
Figure 3-20
Attaching core spring nuts
Chapter 3 Installing the System 91
