D
D
REAR

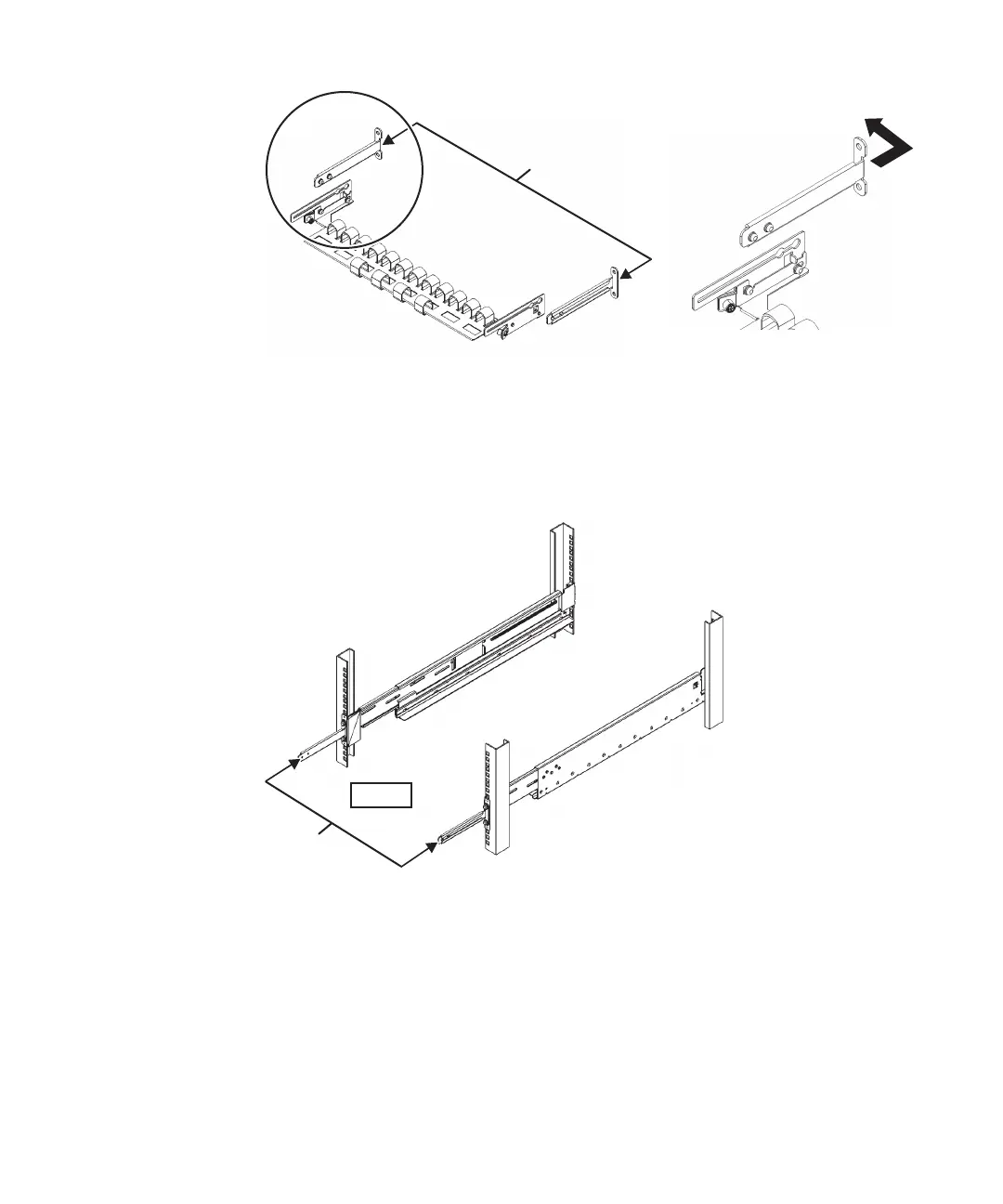

Figure 3-48
Removing the cable support fixing brackets (2)
c. From the rear of the rack, secure the rails and cable support fixing brackets
(D) with two M6 screws to the rear supporting columns of the rack.
The fixing locations are 1U center and 2U center.
Figure 3-49
Attaching the cable
support brackets
Chapter 3 Installing the System 111
