2U center
1U center
Mounting area
(4U)
REAR
Note -
If the door cannot close because the cable support fixing bracket or the cable support
protrudes from the rear of the rack, do not attach the cable support bracket. However, secure
the rail to the rack with two M6 screws.
A (M5 screws)
REAR
FRONT

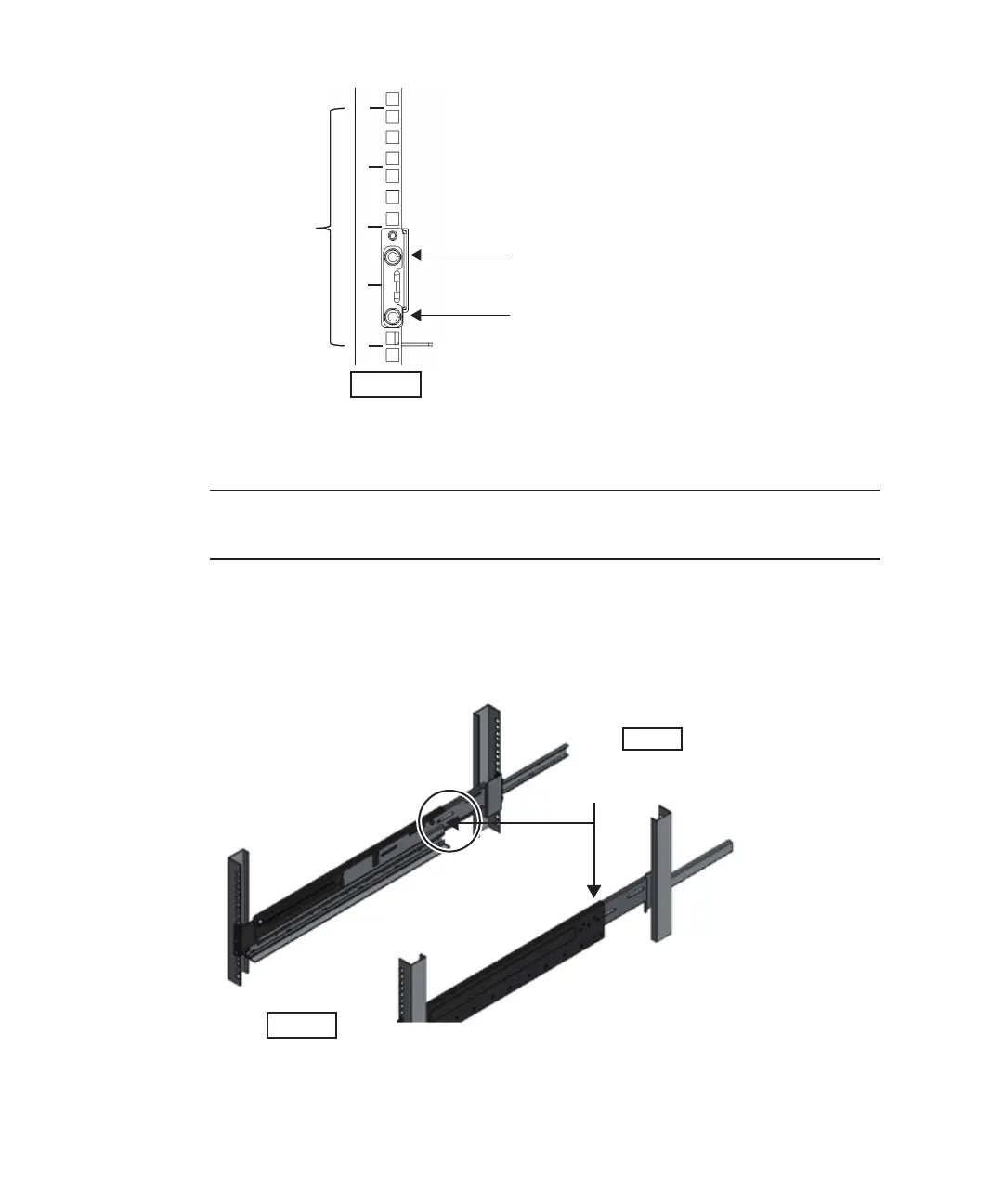

Figure 3-50
Securing the cable support fixing brackets and the rails
d. After attaching the cable support fixing brackets, confirm that the rack door
can close.
8.
Secure the rail sides by using the screws (M5) removed in step 5 (A in Figure
3-51)
.
Figure 3-51
Securing the sides of rails with
screws
9.
Mount the chassis in the rack.
Mount the chassis from the front of the rack.
