Caution -
The SPARC M10-4/SPARC M10-4S weighs 60 kg. Mount the chassis in the
rack with four or more people working together. Alternatively, use a lifter such as a
hydraulic or mechanical jack.
A
A
B
FRONT
FRONT
C
a. When using a lifter, secure it horizontally.
b. Lift the chassis to the mounting location with the lifter or with human force.
c. Put the rear part of the chassis on the flanges of the rails.
d. Slide the chassis into the rack. At this time, store the handle on the
side of the
chassis. Also, confirm that the guide pins of the chassis (A in Figure 3-52) fit
into their rail guides (B in Figure 3-52).
e. Insert the chassis all the way to store it inside the rack.

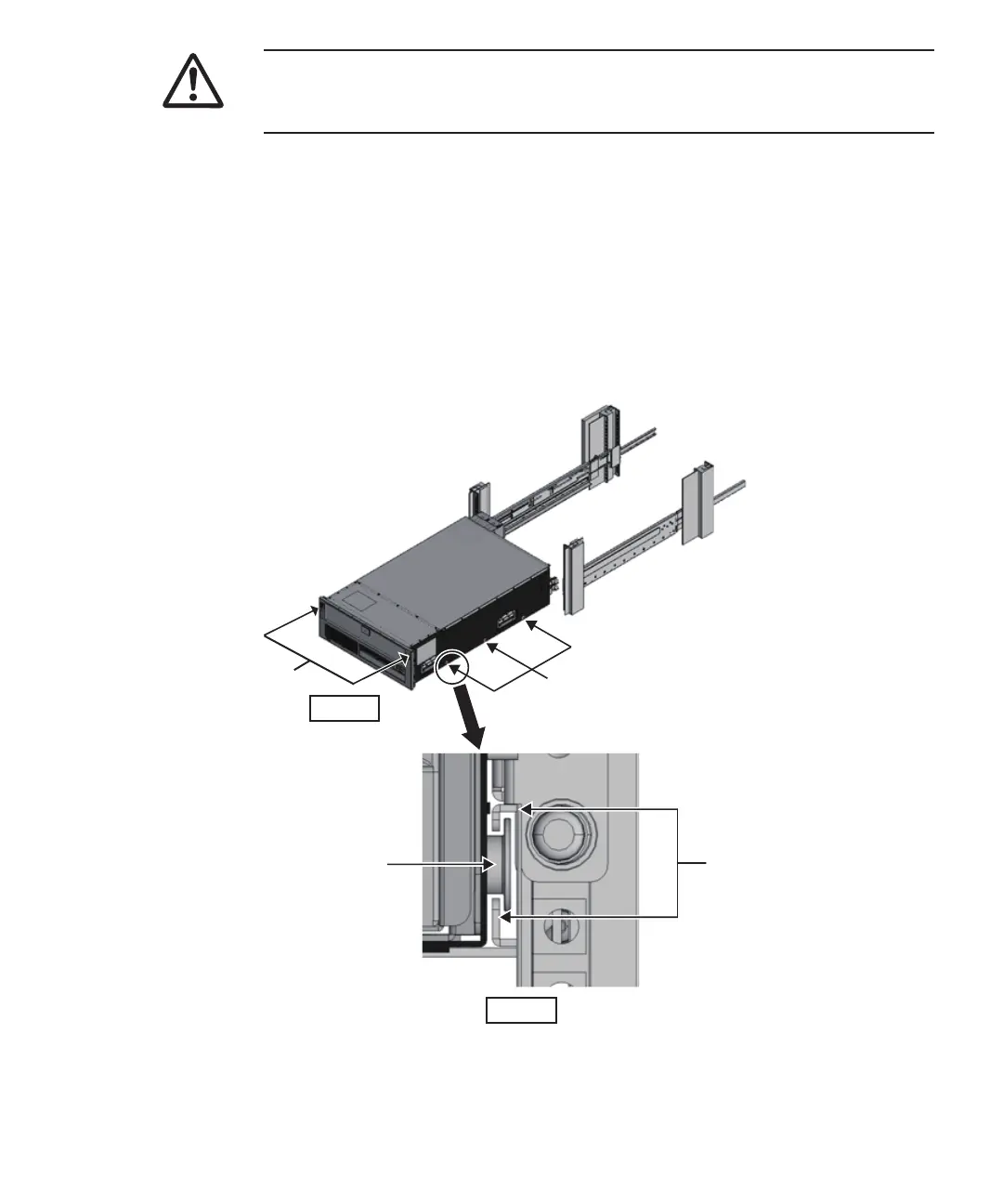

Figure 3-52
Mounting in the rack
10.
Secure the chassis to the rack.
a. Push out the left and right slide locks on the front cover (C in Figure 3-52) to
release the locks, and remove the front cover.
Chapter 3 Installing the System 113
