Note
- A label with the serial number of the chassis is affixed to the front cover. Be sure to
attach the front cover to the corresponding chassis.
(M6 screws)
(M6 screws)
A
A
FRONT
FRONT
b. Tighten the four M6 screws at four locations on the front of the chassis (A in
Figure 3-53) to secure it to the rack.
c. Insert the left and right hooks on the inside of the bottom of the front cover
into the grooves at the bottom front of the
chassis to attach the front cover.

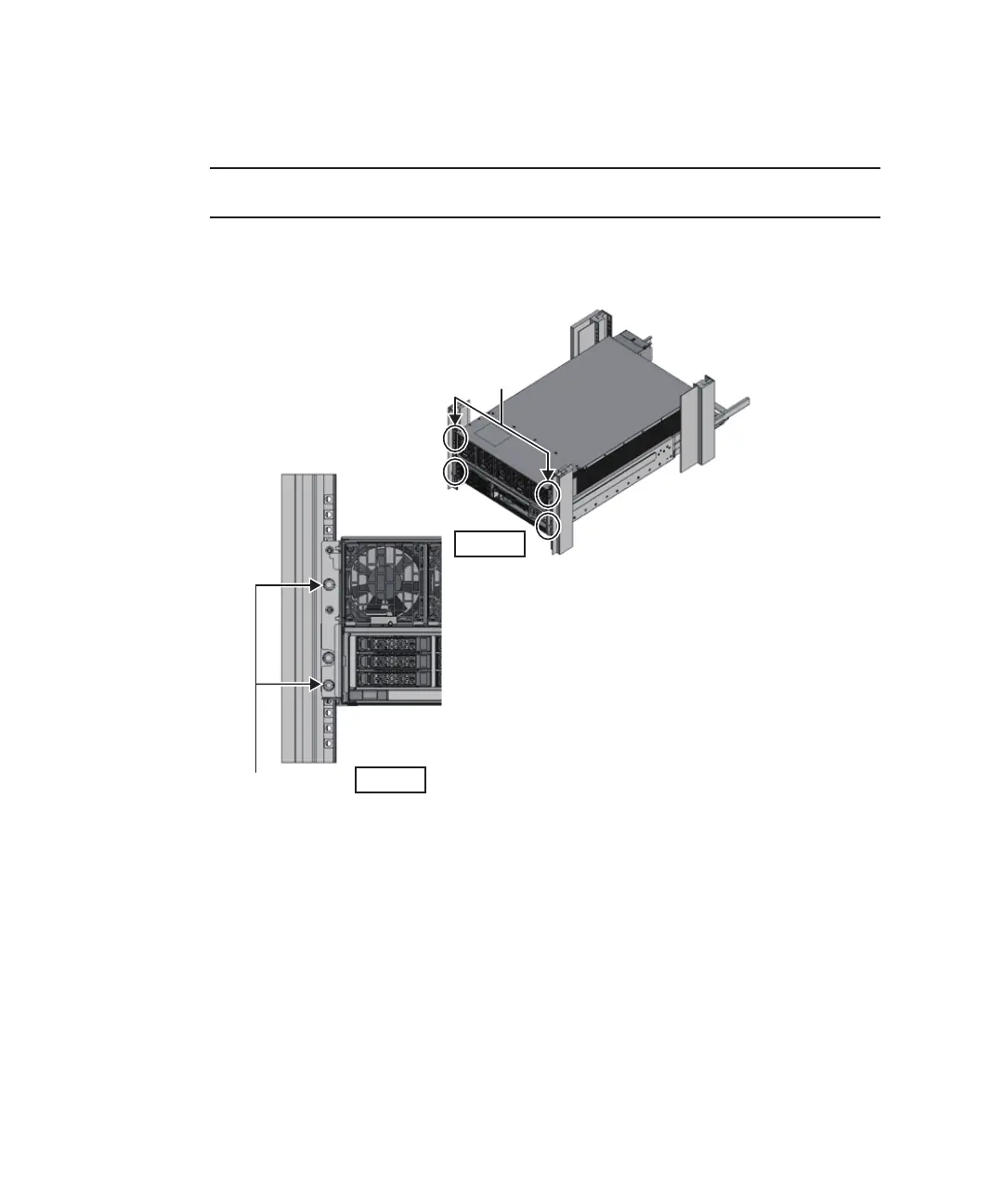

Figure 3-53
Securing the chassis
11.
Attach the cable support.
●
For the Type-1 cable support
a. From the inside of the cable support fixing bracket, align the two screws in the
right cable support bracket with the circular holes at the front of the groove,
and attach the screws (A in Figure 3-54).
b. Slide the cable support bracket toward the
chassis while holding the latch (B in
Figure 3-54) attached to it.
c. Attach the left cable support bracket in the same manner.
At this time, the left and right sides should have been slid the same amount
(depth) toward the chassis.
d. Secure the cable support with two M3 screws
(C in Figure 3-55).
e. Close the rear door of the rack, and confirm that the cable support does not
