Mounting area
(2U)
Mounting area
(2U)
FRONT
REAR
1U top
2U top
2U
FRONT
FRONT
REAR

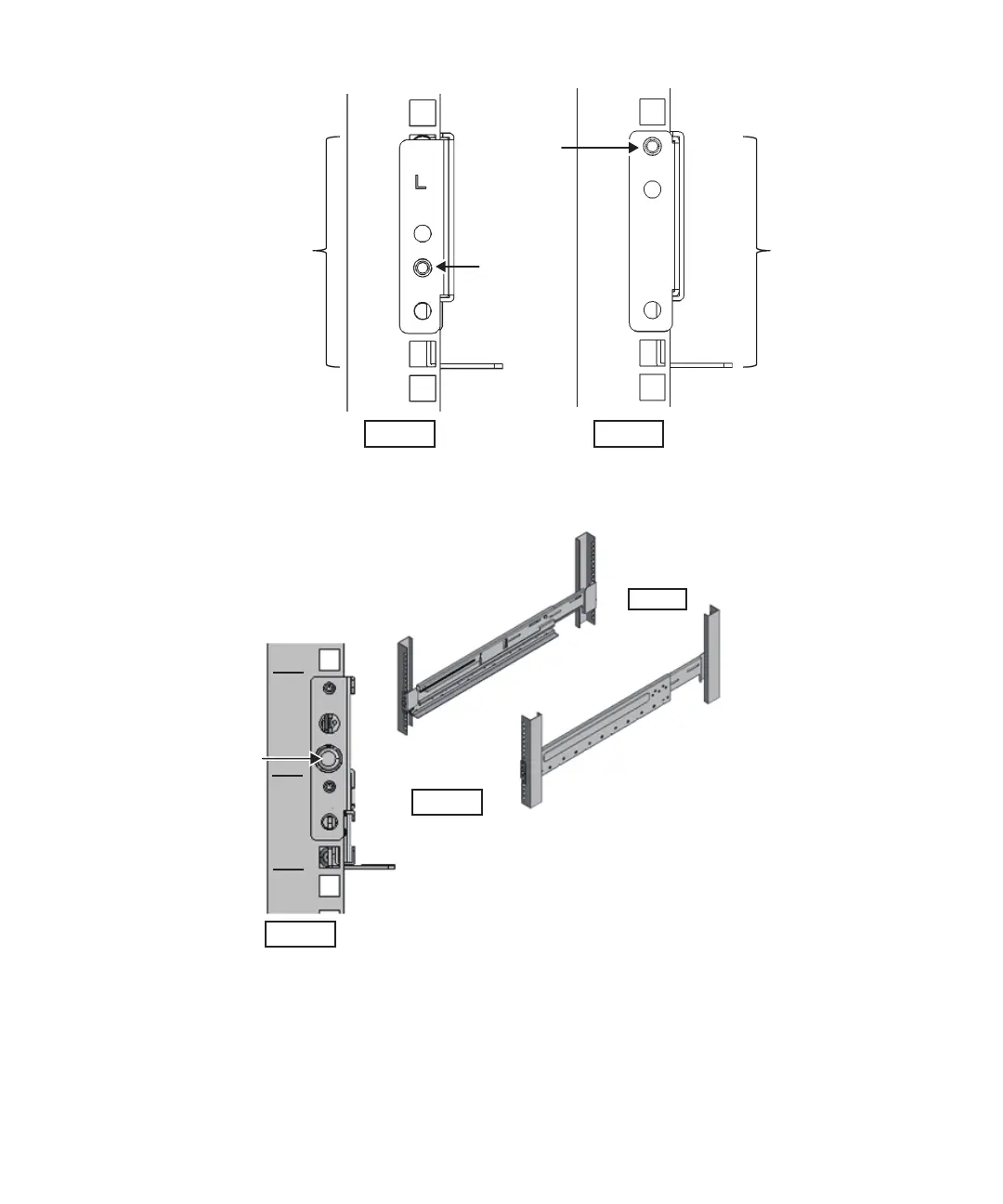

Figure 3-73
Attaching the Type-2 rail: Locations of protrusions
Figure 3-74
Attaching the rail: Fixing location of the screw
6.
Attach the cable support fixing brackets to the rear supporting columns of the
rack.
●
For the Type-1 cable support
a. Orient the notches (B in Figure 3-75) on the cable support fixing brackets (A in
Figure 3-75) face down.
b. From the rear of the rack, secure the rails and cable support brackets with two
