Note -
If the door cannot close because the cable support fixing bracket or the cable support
protrudes from the rear of the rack, do not attach the cable support bracket. However, secure
the rail to the rack with two M6 screws.
A
B
B
REAR
M6 screws to the rear supporting columns of the rack.
The fixing locations are 1U center and 2U center.
c. After attaching the cable support bracket, confirm that the rack door can close.

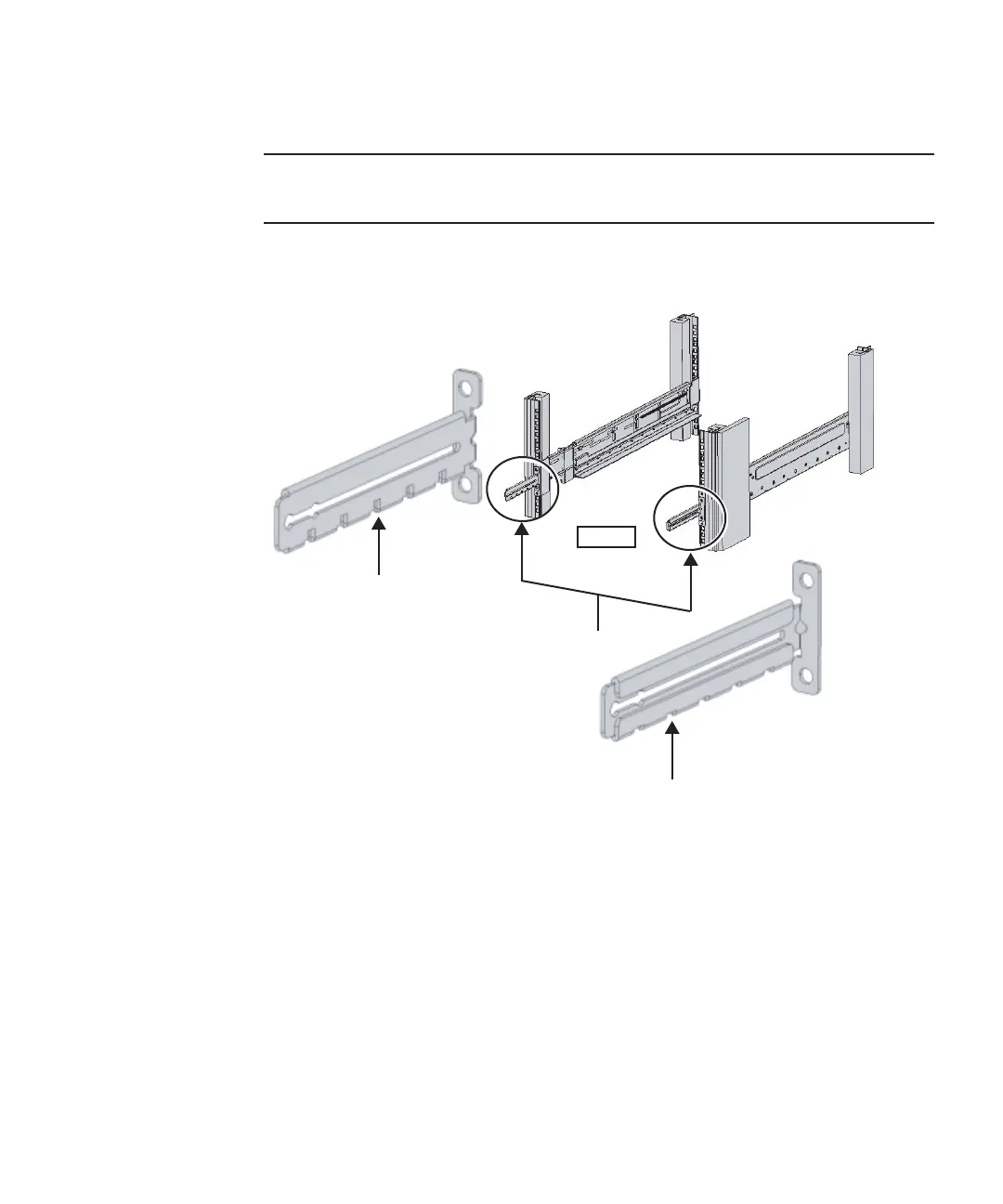

Figure 3-75
Attaching the cable support fixing bracket
Chapter 3 Installing the System 129
