2U center
1U center
REAR
Mounting
area (2U)
C

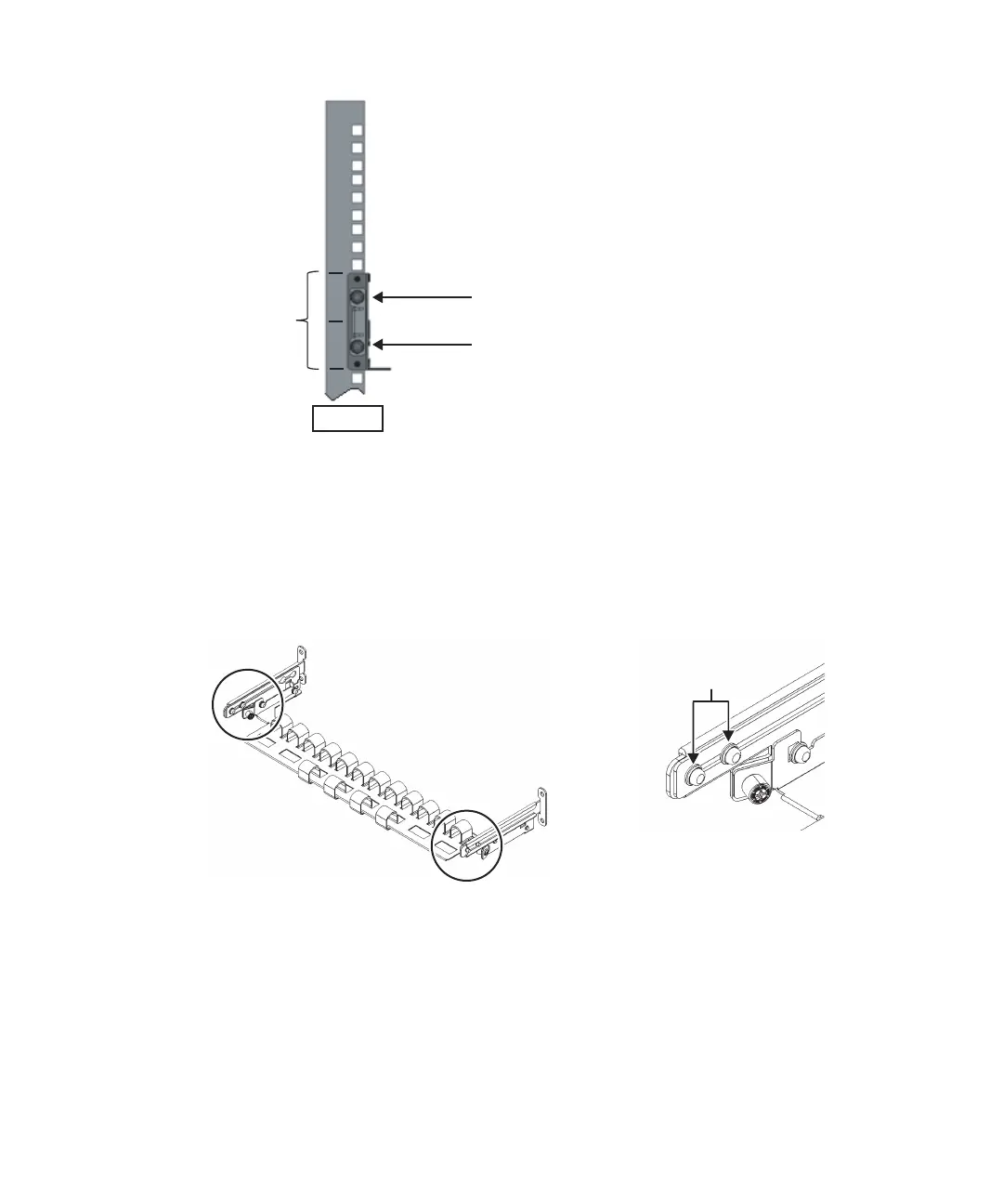

Figure 3-76
Securing the cable support fixing bracket and the rail
●
For the Type-2 cable support
a. Loosen the four screws (C in Figure 3-77) from the inside of the cable support.
Figure 3-77
Removing the cable support fixing brackets (1)
b. Slide the cable support fixing brackets (D in Figure 3-78) to remove them.
