XSCF USB port (for field engineers)
Field engineers use this port to download information from the XSCF.
■
XSCF DUAL control port
Use this port to connect the master XSCF and the standby XSCF.
The port implements the SP to SP communication protocol (SSCP) for the SPARC
M10-4S.
■
XSCF BB control port
The port is used to connect the master XSCF and standby XSCF to each slave
XSCF. There are three ports.
The port implements the SP to SP communication protocol (SSCP) for the SPARC
M10-4S.
Other unit ports
■
GbE LAN port
The port is used to connect Oracle Solaris to the network. There are four ports.
Connection to the network is also possible through a LAN card, which is provided
by the customer, mounted in a PCI Express (PCle) slot.
■
SAS port
This port is used to connect an external SAS device.
■
USB port
This is a general-purpose USB port. Use the port to connect an external USB DVD
device, etc.
Figure 2-30 and Figure 2-31 show the external interface port locations on the SPARC
M10-1 and SPARC M10-4/M10-4S.

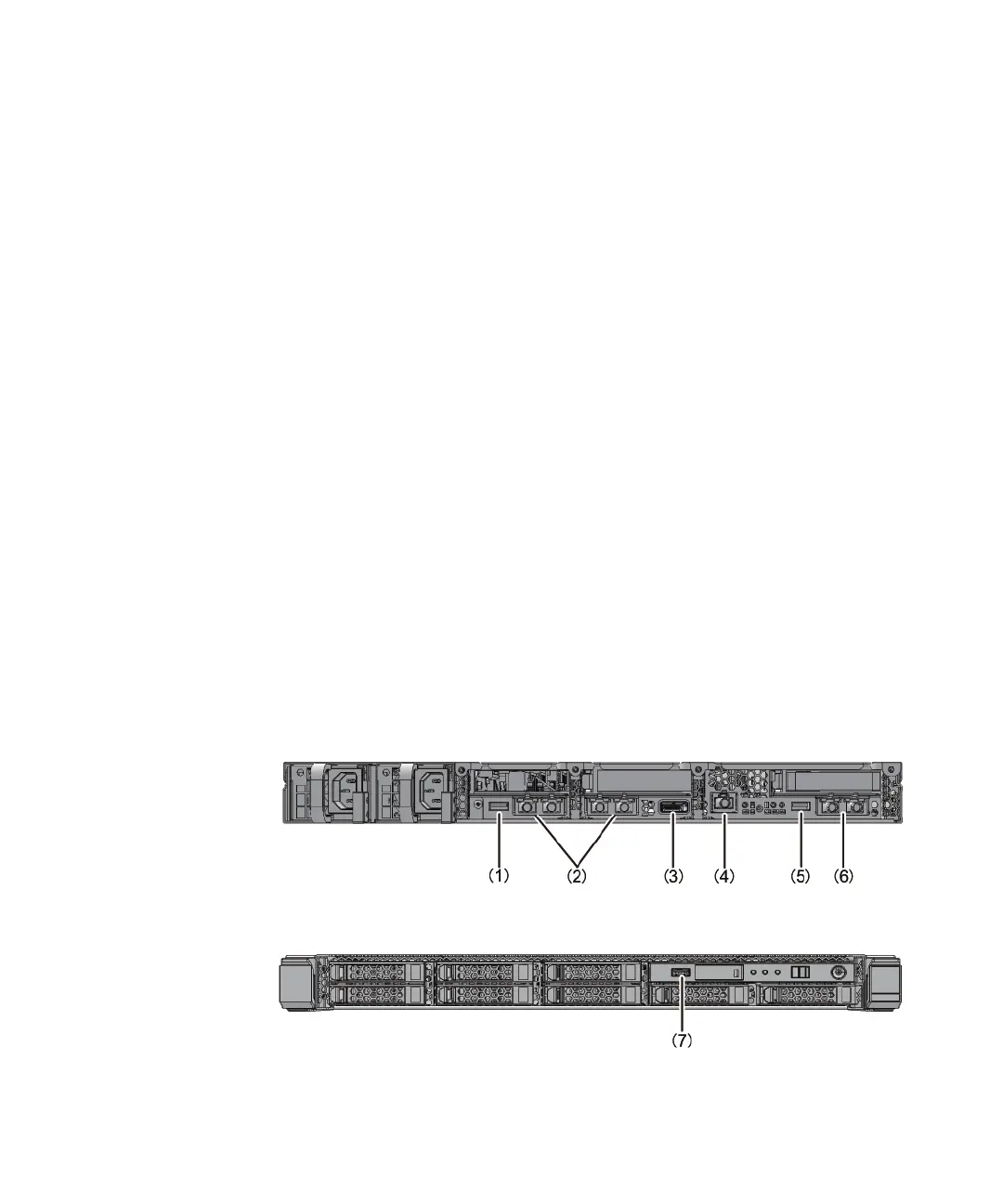

Figure 2-30
Locations of the ports for network connections (SPARC M10-1)
Chapter 2 Planning and Preparing for System Installation 63
