48 Operating Manual RX200 S3
Controls and Displays Startup and Operation
5.1.2 Hard disk drive control indicators

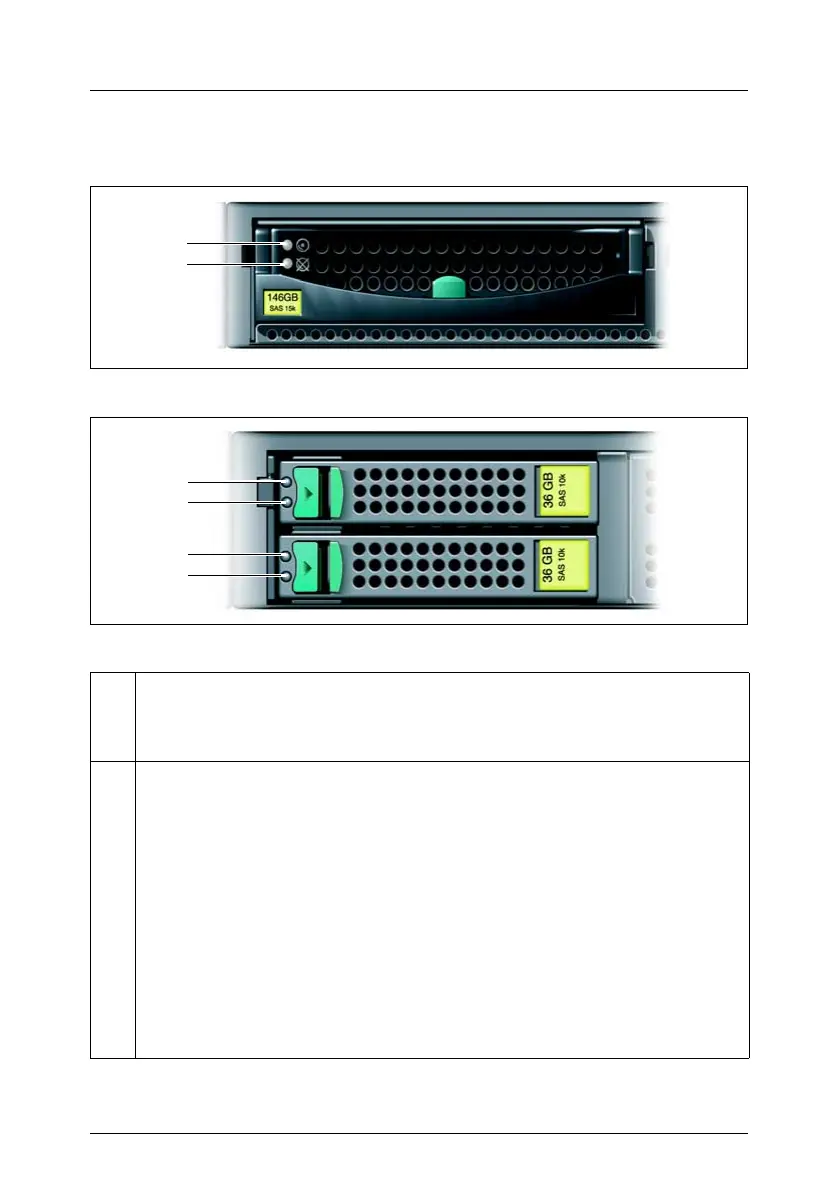

Figure 12: Indicators on the 3.5 inch HDD module
Figure 13: Indicators on the 2.5 inch HDD module
1 HDD BUSY (green)
– Lights: HDD in active phase
– Does not light: HDD inactive (drive inactive)
2 HDD FAULT (orange)
(in conjunction with a RAID controller)
– Not lit: No HDD error
– Lit: HDD Faulty or Rebuild Stopped (drive defective/needs replacing,
a rebuild process was stopped or the HDD module is not correctly
inserted)
– Slow flashing: HDD Rebuild (the data is being restored after changing
a hard disk drive)
– Fast flashing: HDD Identify
– Four fast blinks/pause: HDD Predicted Fault
– Two fast flashes/pause: HDD Hot Spare (Hot spare drive active. The
corresponding drive has failed).
2
1
1
2
1
2
