RX200 S3 Operating Manual 35
Hardware Installation Installing/Removing the Server in/from the Rac
4.2.1 Mounting in the PRIMECENTER/DataCenter Rack
For installation in the PRIMECENTER/DataCenter Rack, the following parts are
required:
– Support bracket
– one left and one right telescopic rail (assembled)
– M5x10 screws with integrated plugwashers
I – Or, M5x10 screws with separate plugwashers can also be used. In
this case, two plugwashers each must be fitted beforehand on the
support uprights and the support bracket.
– The descriptions and figures in this section refer to the current
variable support.
– General information is provided in the Technical Manual for the
PRIMECENTER and/or DataCenter Rack (see “Literature” on
page 89).
When mounting the left telescopic rail in the PRIMECENTER/DataCenter Rack,
the supplied support bracket must first be mounted on the rear left support
upright flush with the bottom edge of the device.

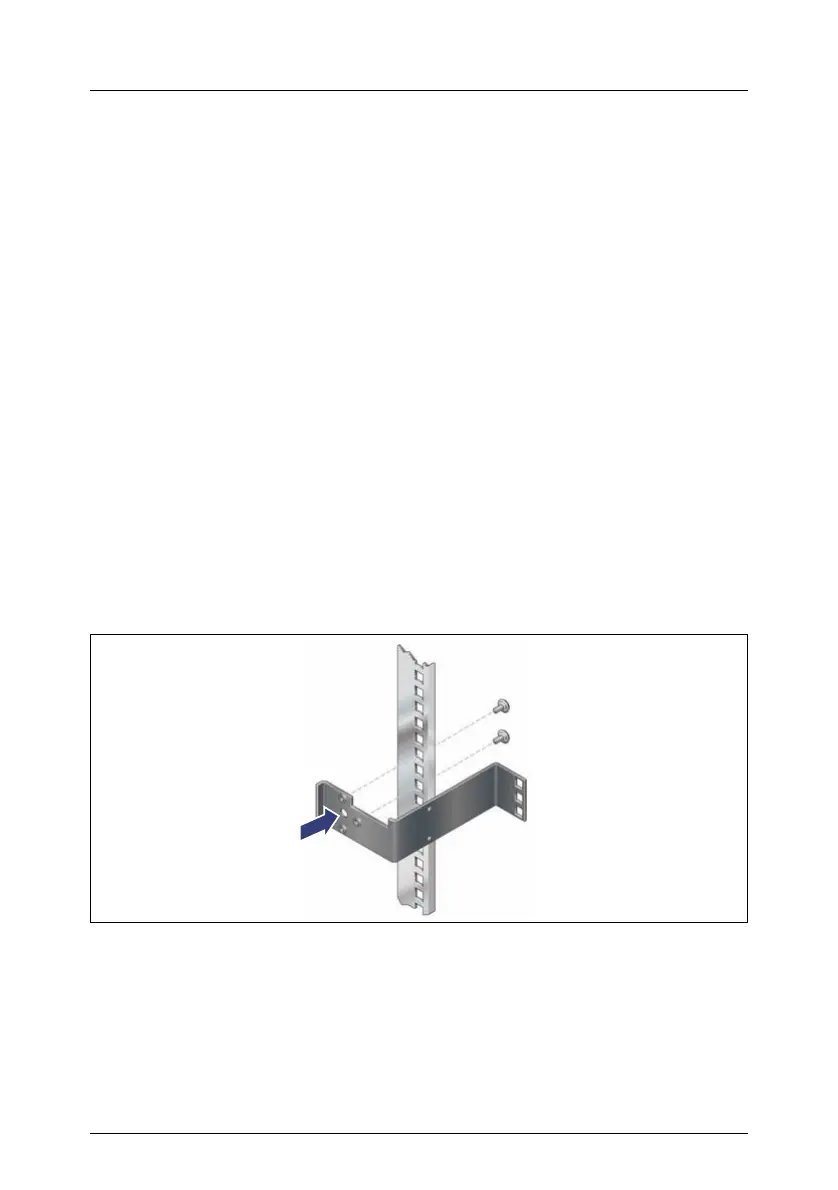

Figure 3: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (insert lug in corresponding hole) (1).
Ê Secure the bracket with two screws incl. plug washers (2).
1
2
