RX200 S3 Operating Manual 39
Hardware Installation Installing/Removing the Server in/from the Rac
Racks with installation depth smaller/greater than 735 mm
The lengths of the telescopic rails have to be adjusted with respect to each other
when installing in rack systems with an installation depth greater than/less than
735 mm. The length is adjusted with the spring element on the variable support
Ê Secure the telescopic rails as described in section “Mounting in the PRIME-
CENTER/DataCenter Rack” on page 35.
Ê Mount the server (see section “Inserting the server” on page 39) and route
the cables as described in the original manual of the rack.
4.2.3 Inserting the server

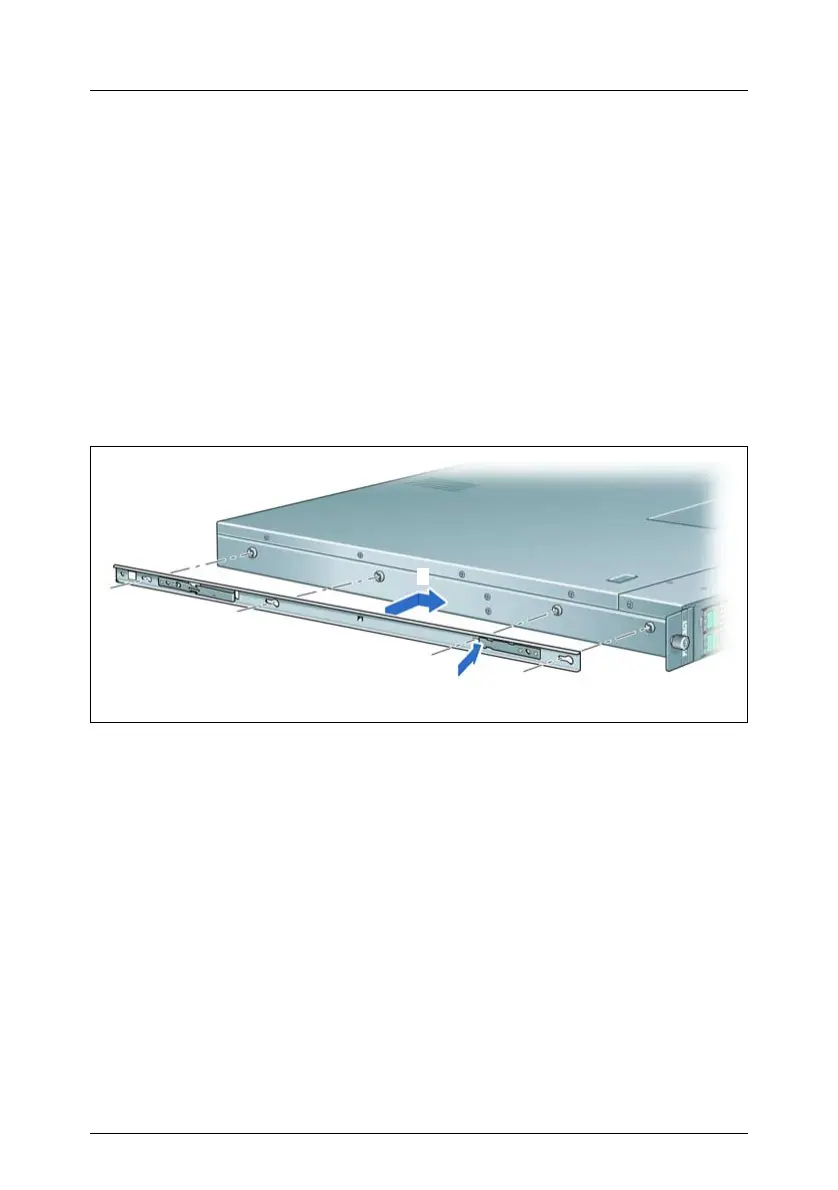

Figure 6: Preparing the Server
Ê Place the server rails on the four screws on both sides of the server and slide
the server rails forwards to secure them (1).
The safety spring (2) must engage with an audible click.
1
2
