RX200 S3 Operating Manual 45
5 Startup and Operation
V CAUTION!
Please note the safety instructions in chapter “Important Infor-
mation” on page 17.
5.1 Controls and Displays
5.1.1 Front of server
figure 11 on page 45 shows the operating and indicator elements on the front.

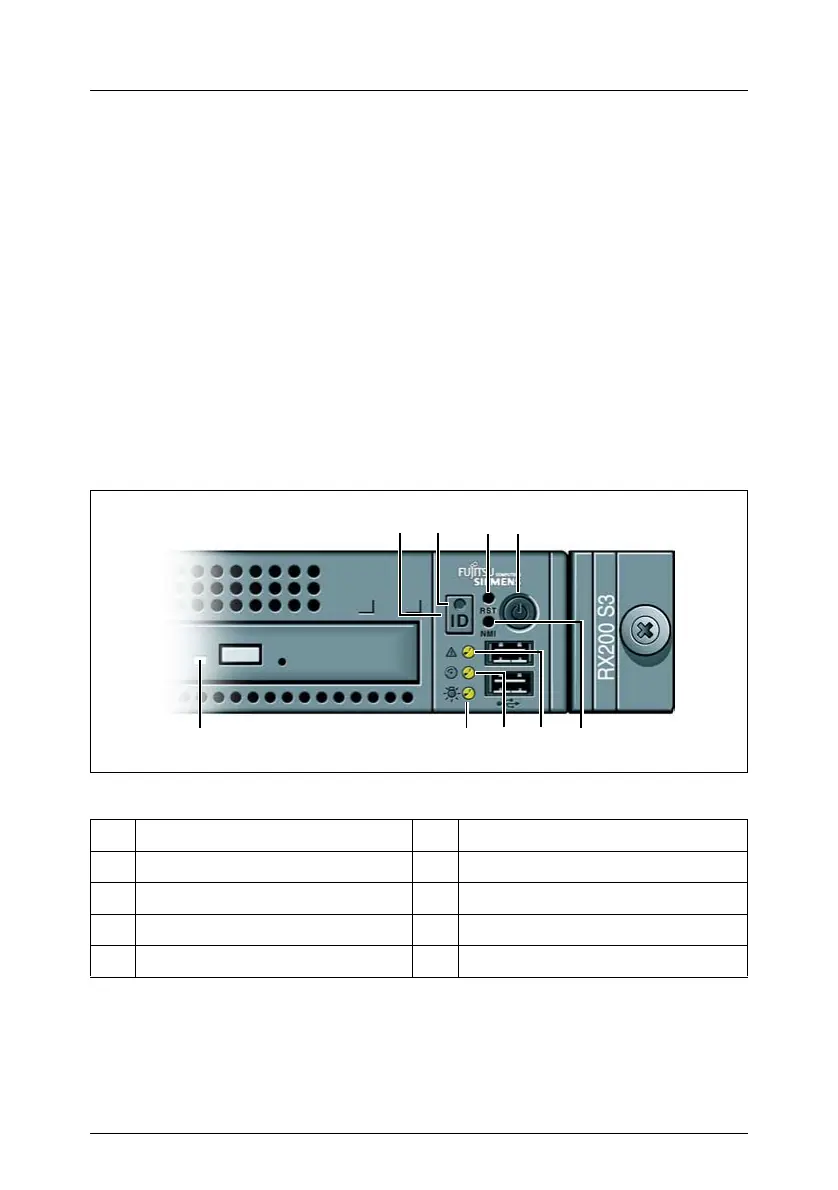

Figure 11: Controls and indicators on the front
1 ID button 6 Global error indicator
2 ID indicator 7 Drive access indicator
3 Reset button 8 Power on indicator
4 On/Off button 9 CD-ROM/DVD-ROM indicator
5 NMI button
67
1342
8 59
