68 Operating Manual RX200 S3
Hot-plug power supply units Hot plug components
8.1.2 Adding a Hot Pluggable Power Supply Unit
Ê Slide the second power supply unit into the empty mounting location until it
locks into place (see section “Replacing Hot Pluggable Power Supply Units”)
and connect it up (see section “Connecting the Server to the Mains” on
page 43).
8.1.3 Replacing Hot Pluggable Power Supply Units

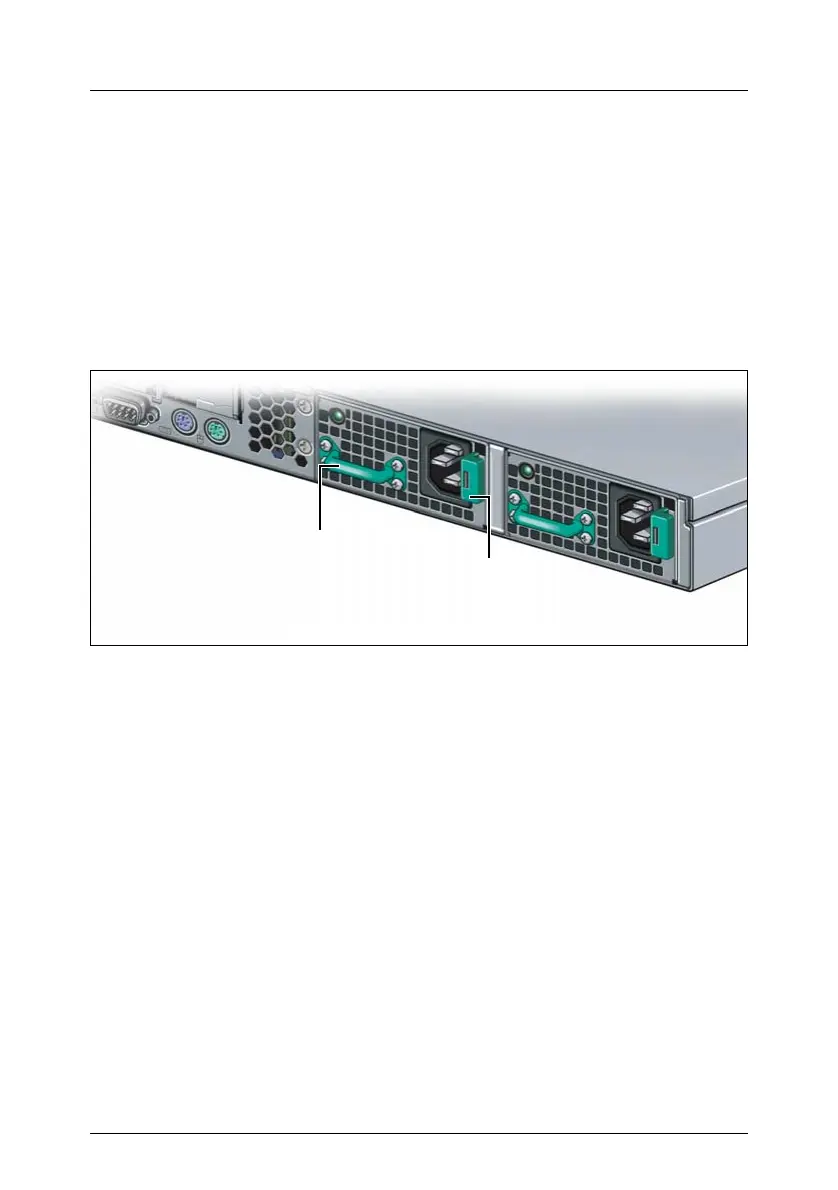

Figure 16: Unlocking and removing the power supply unit
V CAUTION!
Before replacing a non-defective power supply unit in a non-redundant
configuration (only one power supply unit present), the server must be
switched off.
Ê Remove the cable from the installed power supply unit.
Ê Push the green catch to the left (1).
Ê Pull the power supply unit out of its mounting location (2) by the handle.
Ê Slide the new power supply unit into the empty slot until it clicks into place.
I Make sure that the power supply unit engages correctly in the
mounting location and is locked in position.
This is the only way to avoid the power supply unit being shaken out
of its mountings and damaged during transportation.
Ê Connect the newly installed power supply unit.
