Hot plug components Replacing a Hot-plug Fan
8.3.1 Exchanging the fan
Ê Open the fan cover (see section “Opening/Closing the Fan Cover” on
page 81).

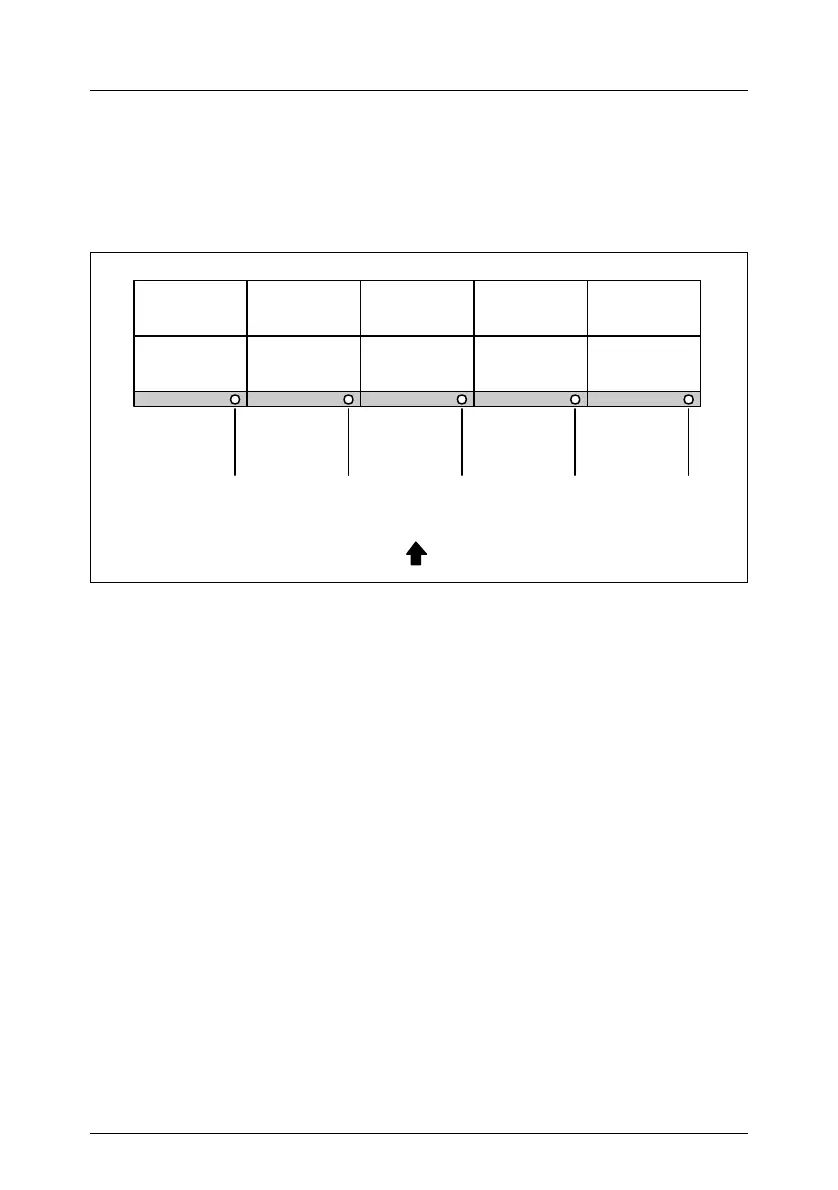

Figure 23: Arrangement of fans and the corresponding indicators
Ê Use the LED (lit/flashing orange) to identify the defective fan.
Front
LED LED LED LED LED
FAN SYS 1
FAN SYS 2
FAN SYS 3
FAN SYS 4
FAN SYS 5
FAN SYS 6
FAN SYS 7
FAN SYS 8
FAN SYS 9
FAN SYS 10
