80 Operating Manual RX200 S3
Replacing a Hot-plug Fan Hot plug components

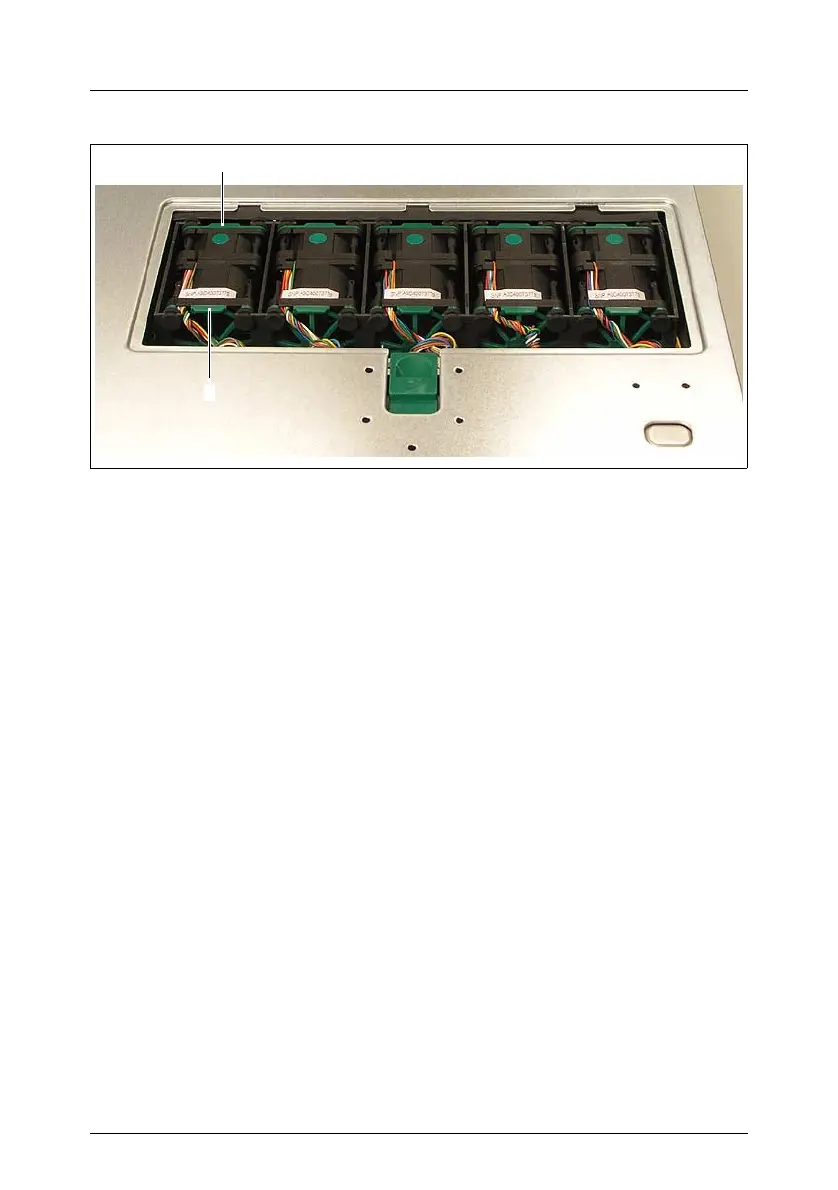

Figure 24: Removing the Fan
Ê Take hold of the fan by the green Touch Points (1) and lift it out of the
housing.
Ê Set the fan down on the outside of the server.
V CAUTION!
Never set a removed/defective fan down inside the server. Risk of
short circuit!
Mounting is performed in the reverse order.
I The new fans are measured with explicit commands in Server
Management. Depending on the result, the corresponding LED (see
figure 23 on page 79) is set to green (fan is in order) or orange (fan is not
in order).
Ê Return the fan cover to its position (see section “Opening/Closing the Fan
Cover” on page 81).
1
1

Fujitsu PRIMERGY RX200 S3 Specifications

General

Number of Processors	2
Storage	Up to 6 x 3.5" SAS/SATA HDD
RAID Support	RAID 0, 1
Network	Dual Gigabit Ethernet
Form Factor	1U Rack
Power Supply	Hot-plug redundant power supply
