RX200 S3 Operating Manual 71
Hot plug components Hot-pluggable hard disk drives
8.2.2 Installing/removing the dummy unit
Free slots are provided with a dummy module that must be removed before
installing an additional HDD module.

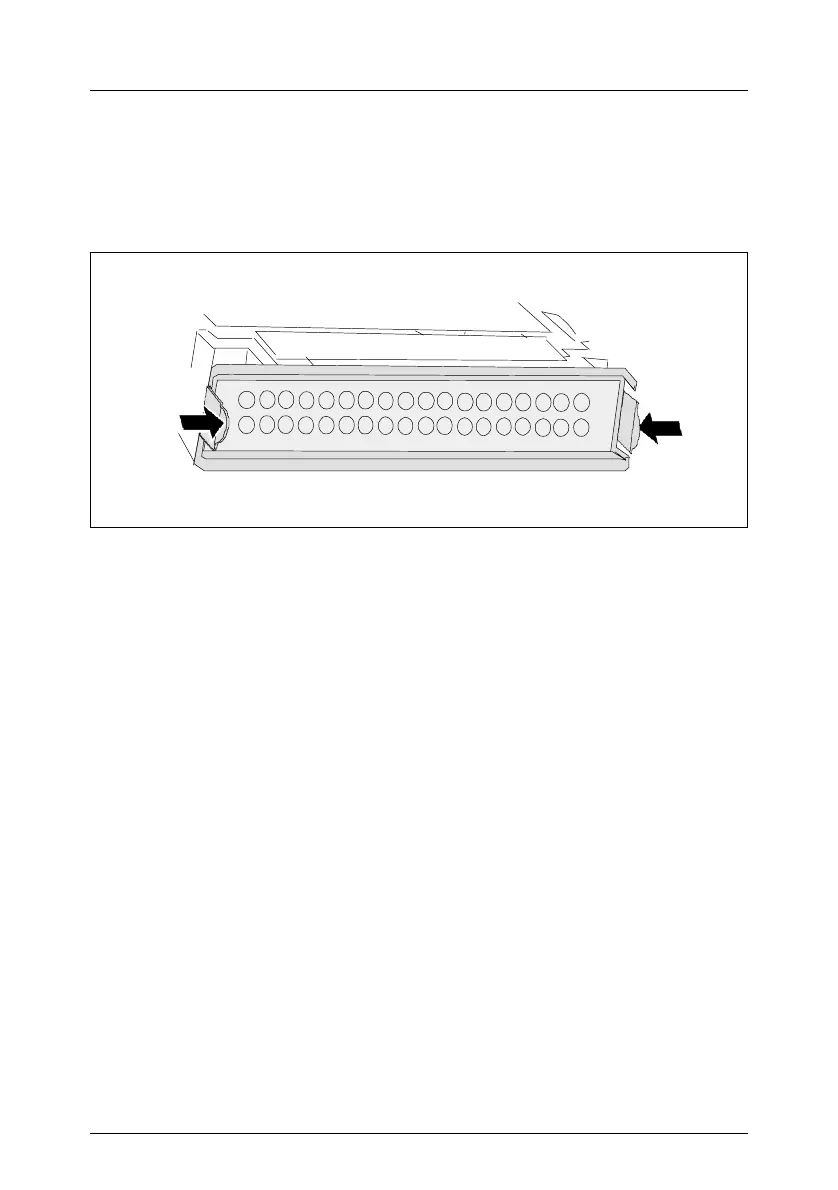

Figure 17: Removing the dummy unit
Ê Press both tabs on the dummy module together until the locking mechanism
disengages and remove the dummy module from the mounting location.
To install a dummy unit, follow the same procedure in reverse order.
V CAUTION!
Keep the dummy unit for future use. If the HDD module is removed again
and not replaced with a new module, the dummy module must be
reinstalled due to cooling, to comply with applicable EMC regulations
(regulations on electromagnetic compatibility) and to protect against fire.
