Fujitsu PRIMERGY RX200 S3 User Manual

RX200 S3 Operating Manual 49
Startup and Operation Controls and Displays
5.1.3 Rear of Server

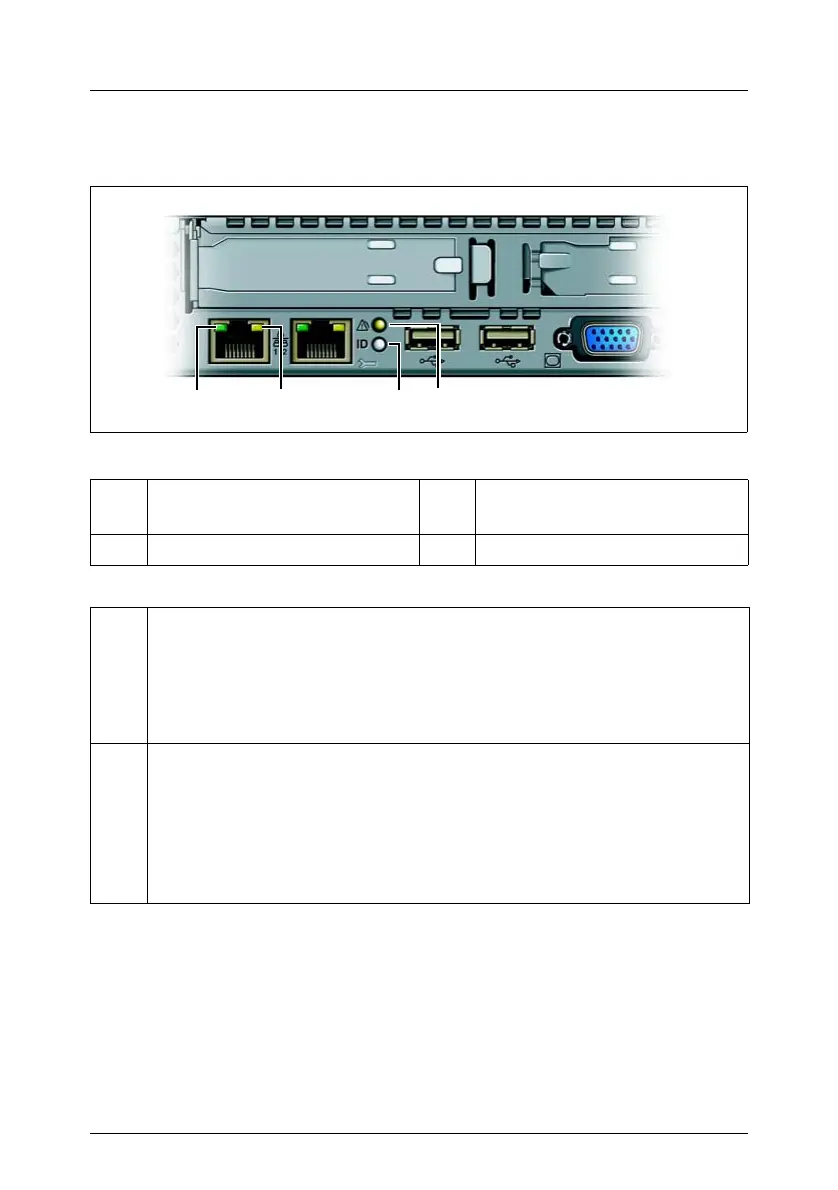

Figure 14: Indicators on the Rear Side
1 LAN connection/Active
indicator
3 Global error indicator
2 LAN transfer rate indicator 4 ID indicator
1 LAN connection/Active indicator (green)
Lights green if a LAN link exists.
Does not light up if a LAN link does not exist.
Flashes during a LAN transfer.
2 LAN transfer rate indicator (bicolor)
Lights orange for a LAN transfer rate of 1 Gbps.
Lights green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps (or if there is no
LAN connection).
3421

Fujitsu PRIMERGY RX200 S3 Specifications

General

Number of Processors	2
Storage	Up to 6 x 3.5" SAS/SATA HDD
RAID Support	RAID 0, 1
Network	Dual Gigabit Ethernet
Form Factor	1U Rack
Power Supply	Hot-plug redundant power supply
