TX150 S6 Options Guide 29
5Main memory
V CAUTION!
Follow the safety instructions in the chapter “Safety instructions” on
page 15 et seq..
The system board supports up to 16 Gbyte main memory. 4 slots (2 memory
banks with 2 slots each) are provided for the main memory. Each memory bank
can be populated with 512 Mbyte, 1 Gbyte, 2 Gbyte or 4 Gbyte unbuffered
DDR2 memory modules.
5.1 Equipping rules

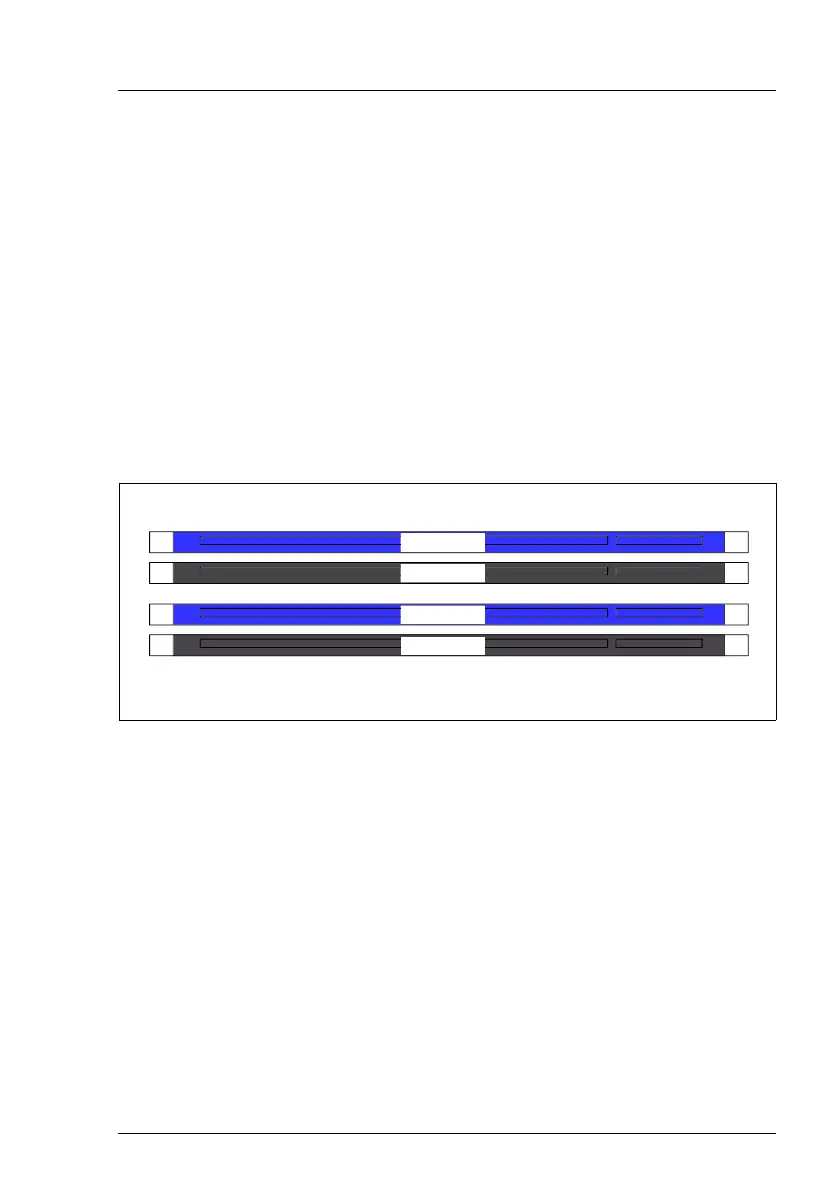

Figure 12: Configuration of the main memory in memory banks and memory modules
– If the memory modules are installed in pairs, they must be identical (2-way
interleaved mode).
– The memory module capacity can differ for the various memory banks: e.g.
memory bank 2A/2B can be equipped with two 512 Mbyte memory modules,
and memory bank 1A/1B with two 1 Gbyte memory modules.
DIMM 1A
DIMM 2A
DIMM 1B
DIMM 2B
