TX150 S6 Options Guide 79
12 Conversion from a floorstand
model to a rack model
V CAUTION!
Follow the safety instructions in the chapter “Safety instructions” on
page 15 et seq..
Ê Open the server and remove the front cover as described in the chapter
“Preparation” on page 21et seq..
I The front cover is no longer required.

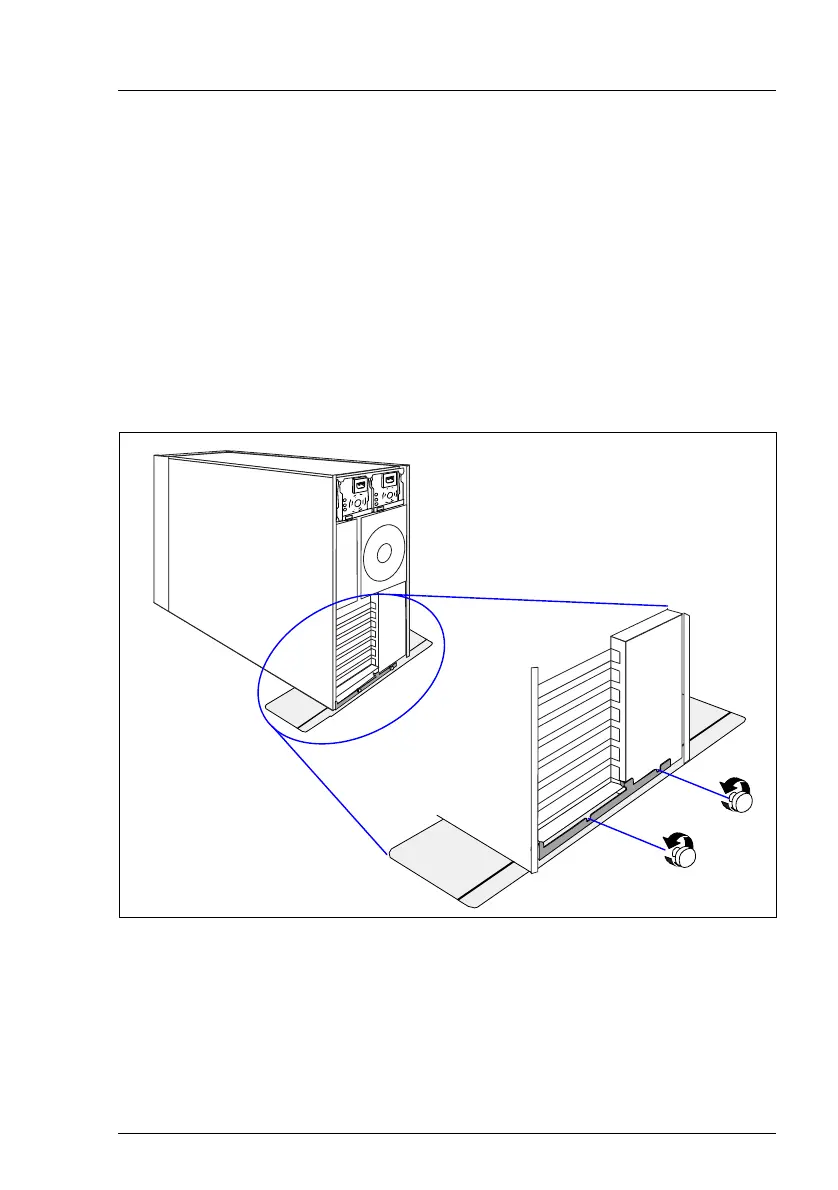

Figure 63: Removing the stabilizer
Ê If your server is equipped with an anti-tilt bracket, remove it:
Ê Remove the two knurled screws (1) and lift the server out of the anti-tilt
bracket.
The right-hand side cover and the top cover build one part.
1
1
