8 Expansion cards in the PCI slots
V CAUTION!
Follow the safety instructions in the chapter “Safety instructions” on
page 15 et seq..
The system board offers six PCI slots:

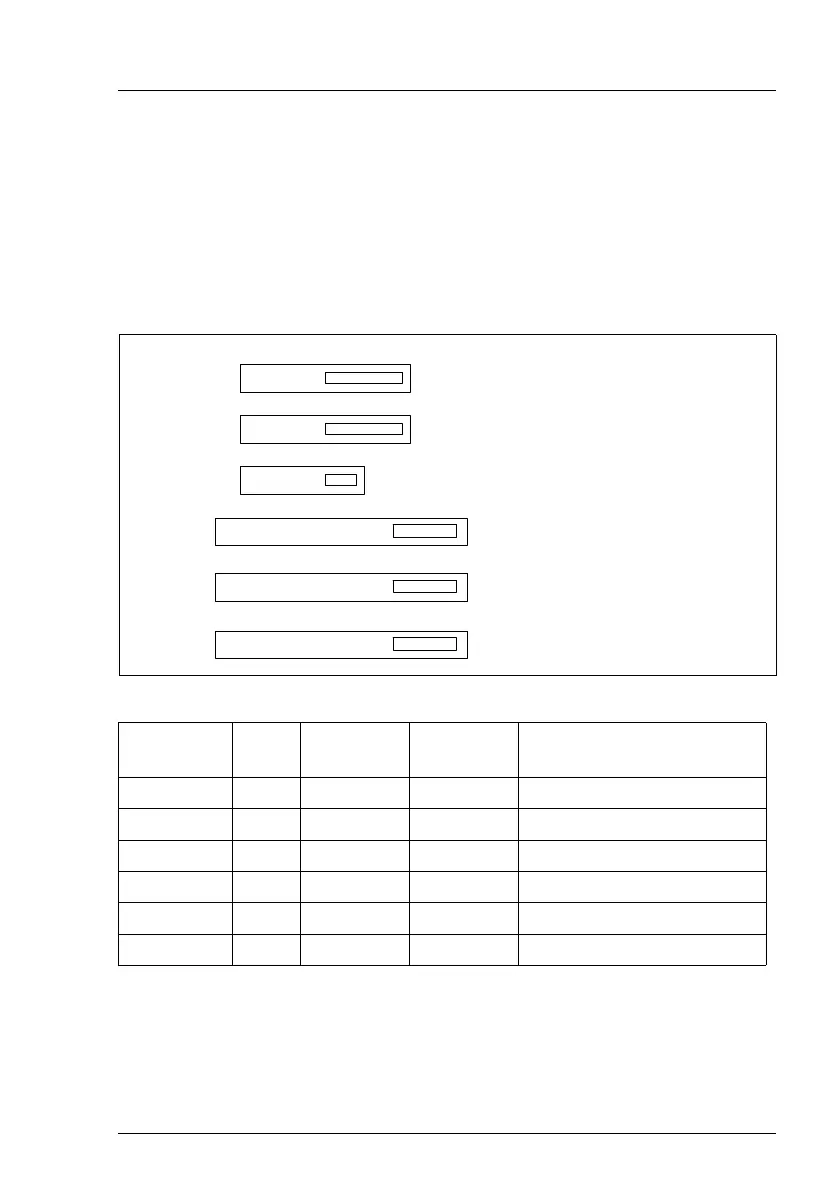

Figure 40: Numbering of the PCI slots
I For more information see the Technical Manual of the system board
D2559.
PCI slot 64Bit/
32Bit
Frequency
in MHz
Voltage Description
1 32 Bit 33 5 32-Bit PCI bus slot
2 32 Bit 33 5 32-Bit PCI bus slot
3 32 Bit 33 5 32-Bit PCI bus slot
4 PCIe x4 bus slot
5 PCIe x8 bus slot
6 PCIe x8 bus slot
1
2
3
4
5
Slot 3
Slot 2
Slot 1
Slot 4
Slot 5
Slot 6
PCIe x8
PCI 32 Bit / 33 MHz
PCIe x8
6
PCI 32 Bit / 33 MHz
PCI 32 Bit / 33 MHz
PCIe x4
