34 Options Guide TX150 S6
Installing an accessible 5.25-inch drive Accessible drives
6.1 Installing an accessible 5.25-inch drive
Ê Open the server and remove the front cover or the rack front cover as
described in the chapter “Preparation” on page 21 et seq..
I New 5.25-inch drives are supplied without EasyClick rails. Before
installing a new drive you must therefore remove the EasyClick rails from
the dummy cover and mount the EasyClick rails on the new drive.

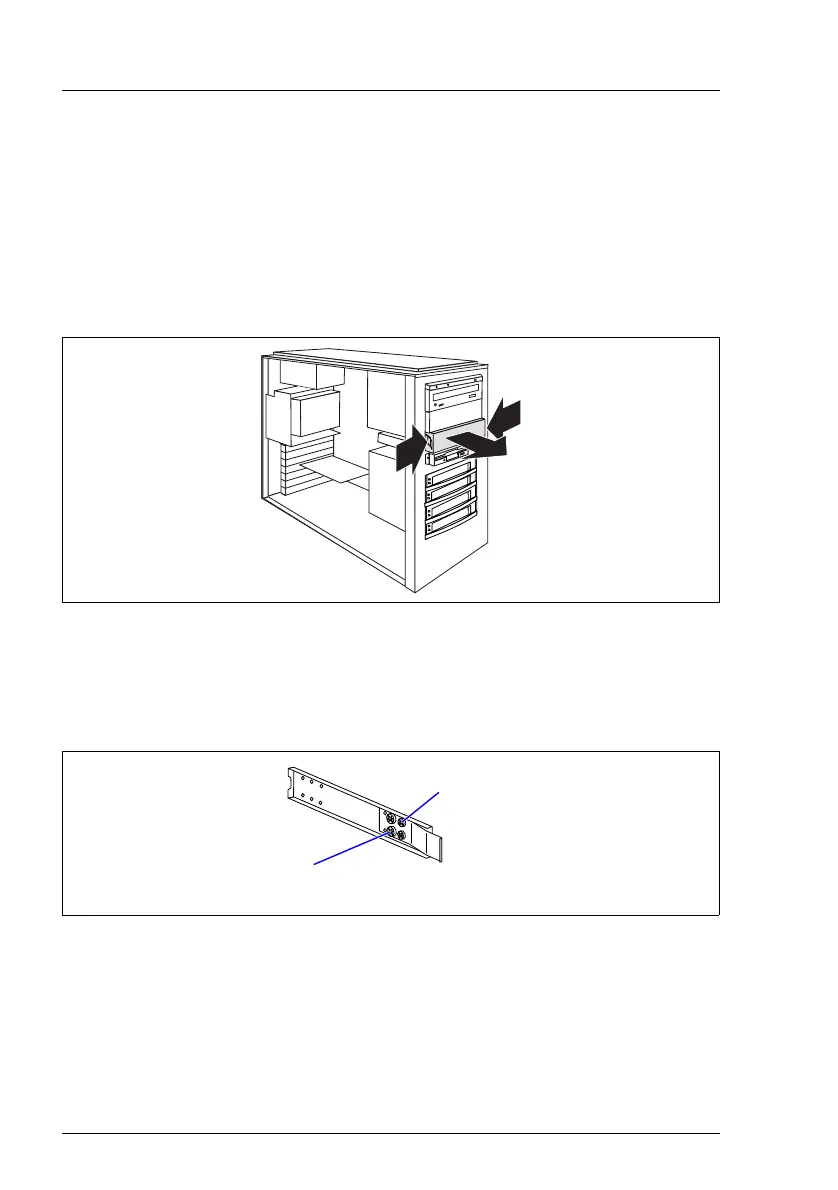

Figure 16: Removing the dummy cover
Ê Press inward on the two metal tongues of the EasyClick rails (1) until the
locking mechanism disengages.
Ê Remove the dummy cover from the mounting bay (2).
Figure 17: UNC and M3 screws
Ê Detach the EasyClick rails from the dummy cover by removing the four
screws on each side.
I Note that there are two M3 screws and two UNC screws on each side.
1
1
2
M3 screw
(small screw head)
UNC screw
(large screw head)
