66 Options Guide TX150 S6
Installing a parallel interface External interfaces
10.2 Installing a parallel interface
Ê Open the server as described in the chapter “Preparation” on page 21 et
seq..

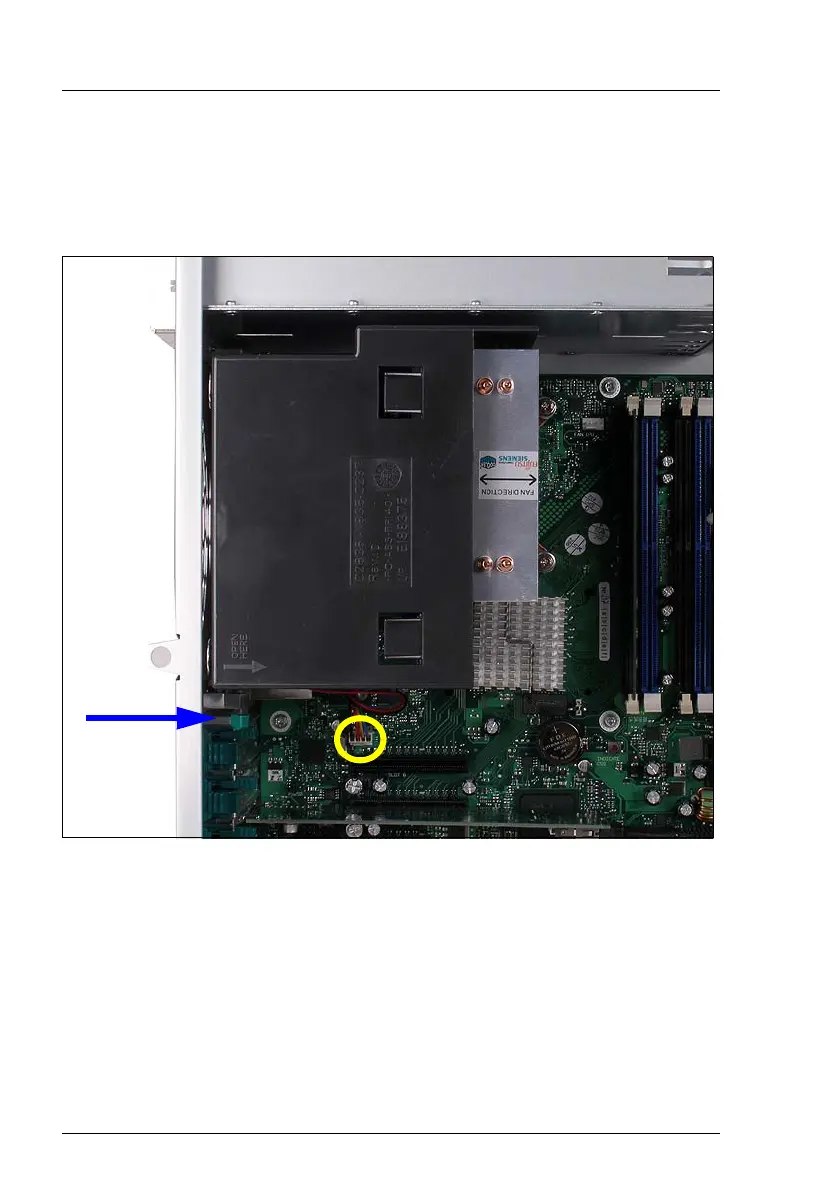

Figure 48: Removing the system fan holder
Ê Disconnect the system fan cable from the connector FAN1 SYS on the
system board (see circle).
Ê Press on the green lock bar of the system fan holder in direction of the arrow
and remove the holder.
