TX150 S6 Options Guide 61
Expansion cards in the PCI slots Installing a BBU
8.3 Installing a BBU
You can install up to two Battery Backup Units (BBU).
Ê Open the server as described in the chapter “Preparation” on page 21 et
seq..

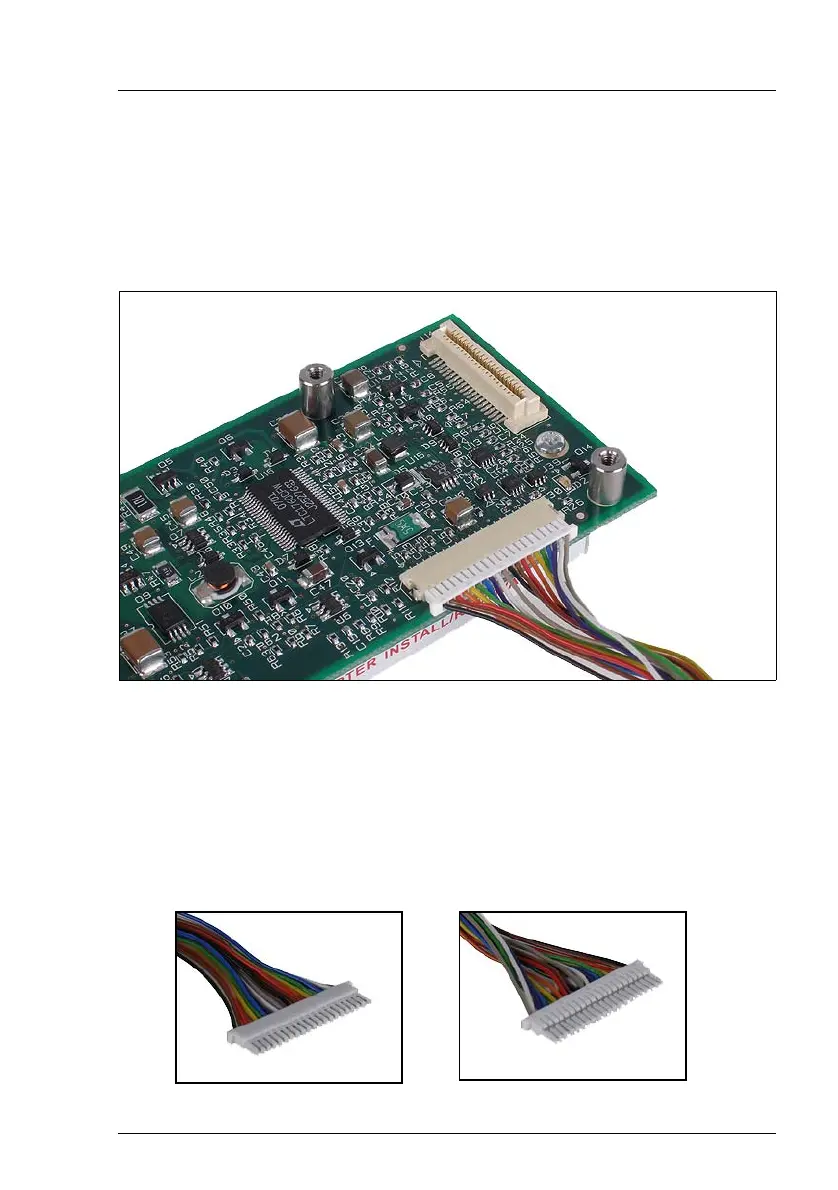

Figure 43: Connecting the cable to the BBU
Ê Connect the cable to the BBU.
V CAUTION!
Make sure that the connector side with two pin rows is on the top.
Otherwise you risk short-circuits.
Side with one pin row: Side with two pin rows:
