30 Options Guide TX150 S6
Expanding/replacing the main memory Main memory
The following table shows the prescribed equipping order:
I In case of dual channel configuration with four memory modules: all four
memory slots must be equipped with identical memory modules.
5.2 Expanding/replacing the main memory
Ê Open the server as described in the chapter “Preparation” on page 21 et
seq..

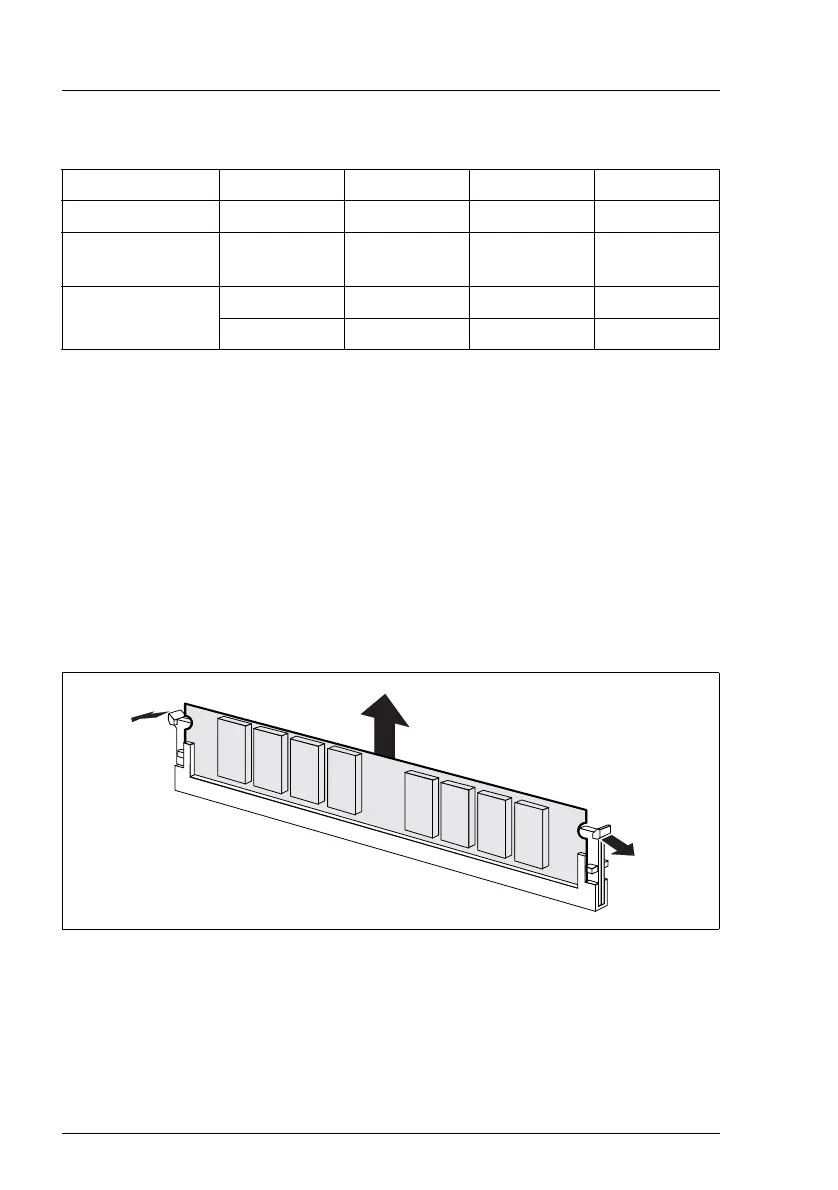

Figure 13: Removing a memory module
Ê Fold the assembly brackets outwards on both sides of the corresponding slot
(1).
Ê If the slot was equipped: pull the memory module out of the slot (2).
DIMM 1A DIMM 2A DIMM 1B DIMM 2B
single channel equipped empty empty empty
single/dual
channel
1
1
The dual-channel mode is only activated, if the size of the used memory modules in socket
DIMM 2A is equal to the summary of memory modules in sockets DIMM 1A and DIMM 1B
(e.g. DIMM 1A = 512 MB, DIMM 1 B= 512 MB, DIMM 2A = 1 GB).
equipped equipped equipped empty
dual channel equipped empty equipped empty
equipped equipped equipped equipped
1
1
2
