TX150 S6 Options Guide 31
Main memory Expanding/replacing the main memory

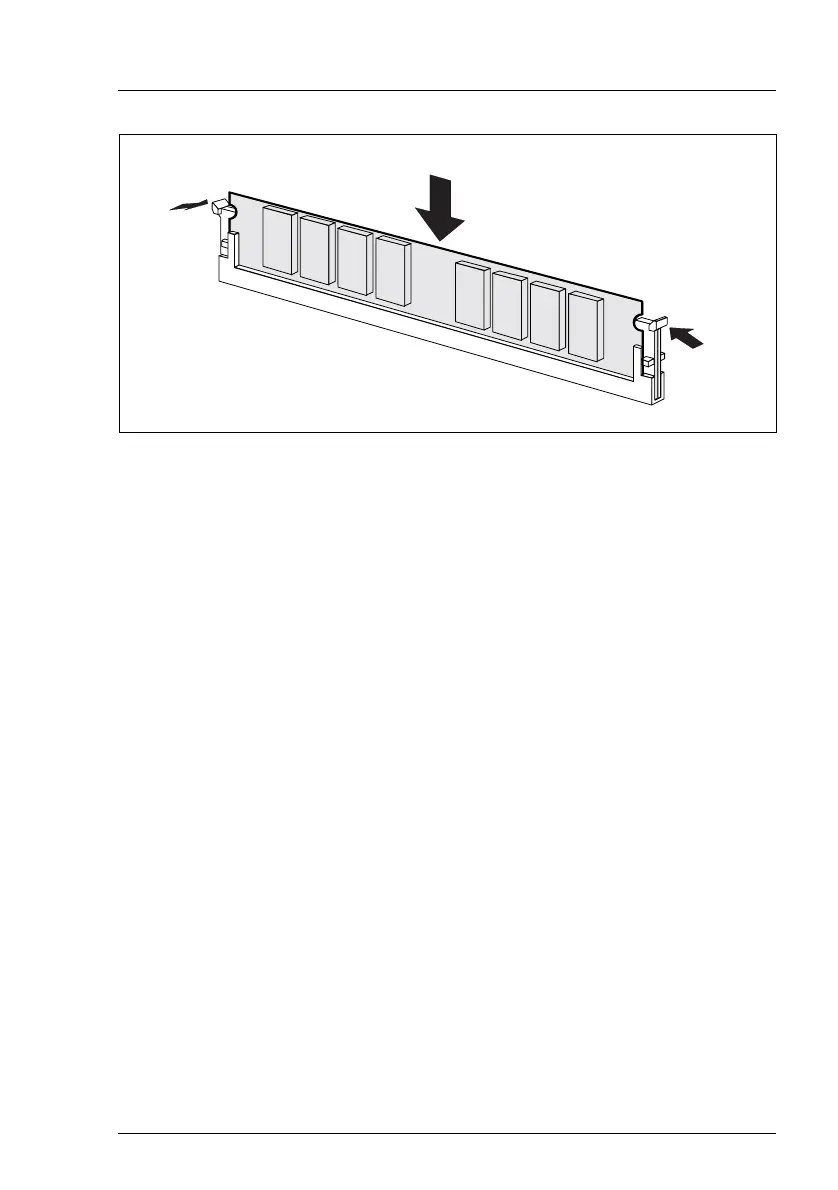

Figure 14: Installing a memory module
Ê Fold the assembly brackets outwards on both sides of the corresponding
slot.
Ê Carefully press the memory module into the slot (1) until the fastening tabs
on both sides of it engage (2).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 85 et seq..
2
2
1
