28 Options Guide TX150 S6
Rack model Preparation
4.2.2 Removing the rack front cover
The rack front cover has to be removed before installing further accessible
drives.

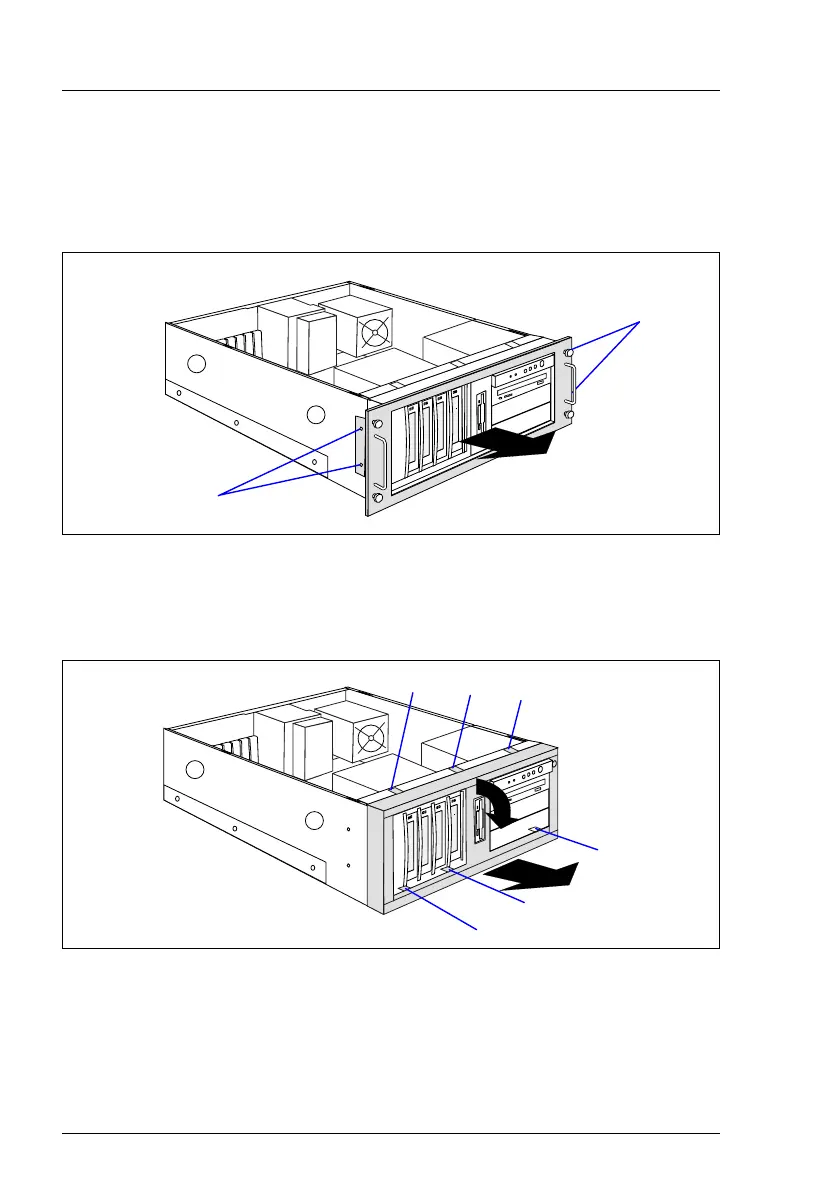

Figure 10: Removing the rack front cover
Ê Remove two knurled screws on either side (1).
Ê Remove the rack front cover to the front (2).
Figure 11: Removing the plastic front cover
Ê Disengage the three latches (1-3) on the top side one after the other and pull
out the plastic front cover approxiate 2 cm (4).
Ê Press the three hooks (5-7) on the bottom side, carefully pull out on the
plastic front cover and remove it to the front (8).
1
1
2
1
5
4
8
2
3
6
7
