TX150 S6 Options Guide 65
10 External interfaces
V CAUTION!
Follow the safety instructions in the chapter “Safety instructions” on
page 15 et seq..
10.1 Installing the COM2 interface
Ê Open the server as described in the chapter “Preparation” on page 21 et
seq..

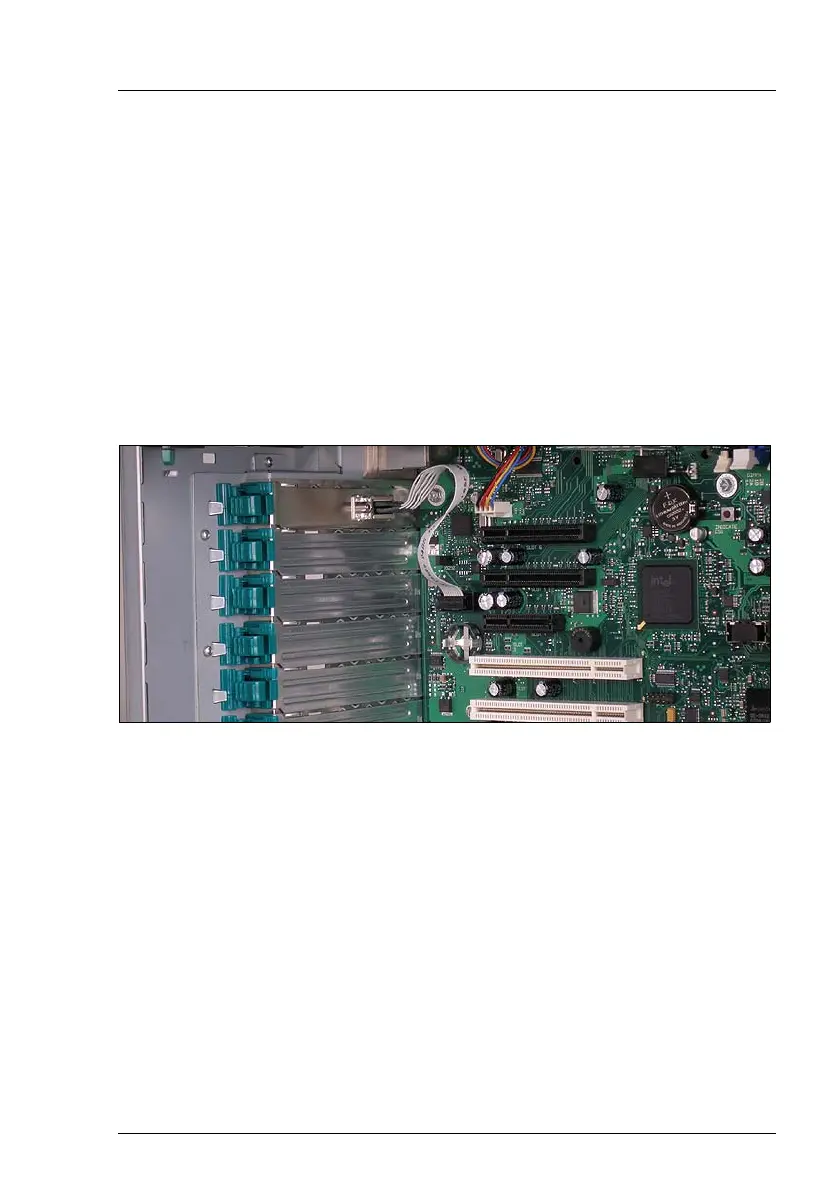

Figure 47: COM2 interface
Ê Remove the rear cover of PCI slot 7 and insert the slot cover of the COM2
interface in this slot as described in section “Installing an expansion card” on
page 58.
Ê Attach the connector Serial2 on the system board with the COM2 interface
connector.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 85 et seq..
