Installing a BBU Expansion cards in the PCI slots

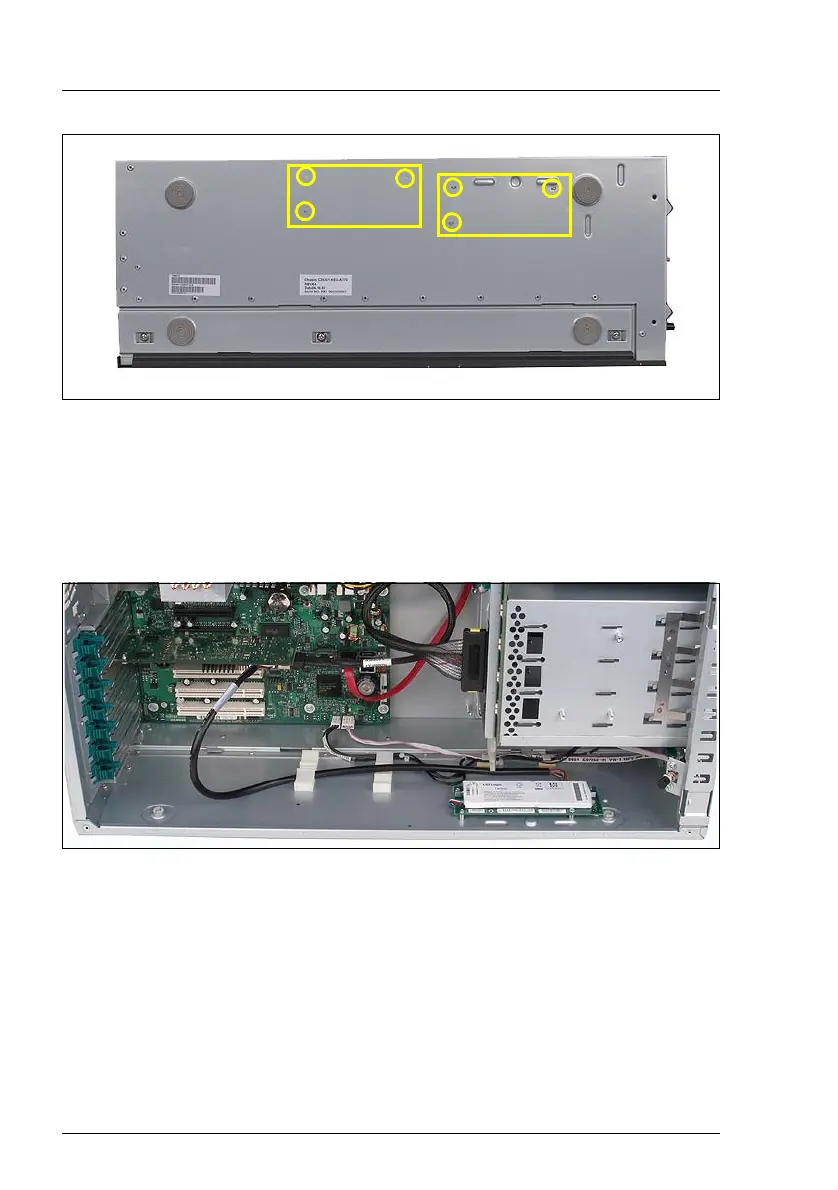

Figure 44: Position screws
Ê Lay the server on the side.
Ê Position the BBU on the inner side of the housing bottom (the first BBU in
the front range, a second BBU in the middle range).
Ê Fasten the BBU with three screws at the outer side.
Figure 45: Installed BBU
Ê Connect the cable to the expansion card.
V CAUTION!
Make sure that the connector side with two pin rows is on the top.
Otherwise you risk short-circuits.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 85 et seq..
BBU 1
BBU 2
