TX150 S6 Options Guide 67
External interfaces Installing a parallel interface

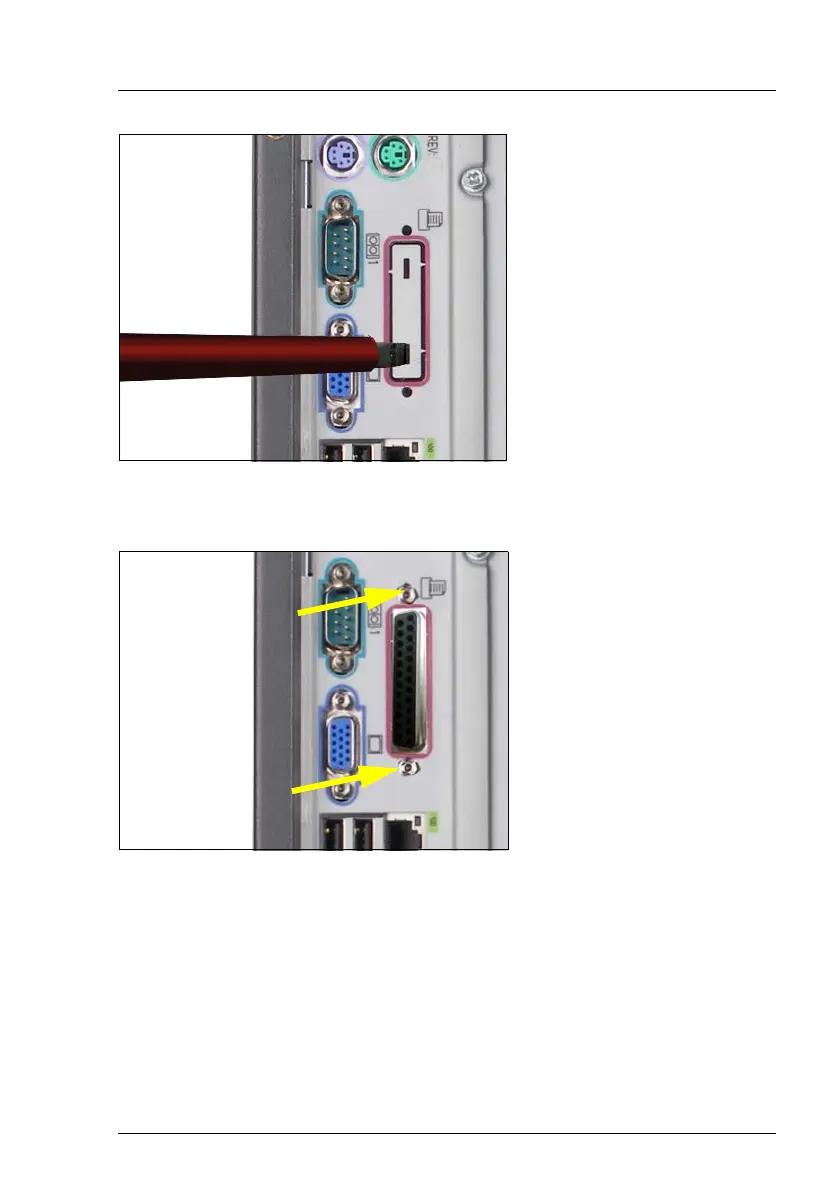

Figure 49: Breaking off the interface plate
Ê Break off the interface plate using a screwdriver.
Figure 50: Fastening the plug connector at the rear of the housing
Ê Feed the plug connector through the notch at the rear of the housing.
Ê Fasten the plug connector to the rear of the housing using the threaded bolts
supplied (see arrows).
