68 Options Guide TX150 S6
Installing a parallel interface External interfaces

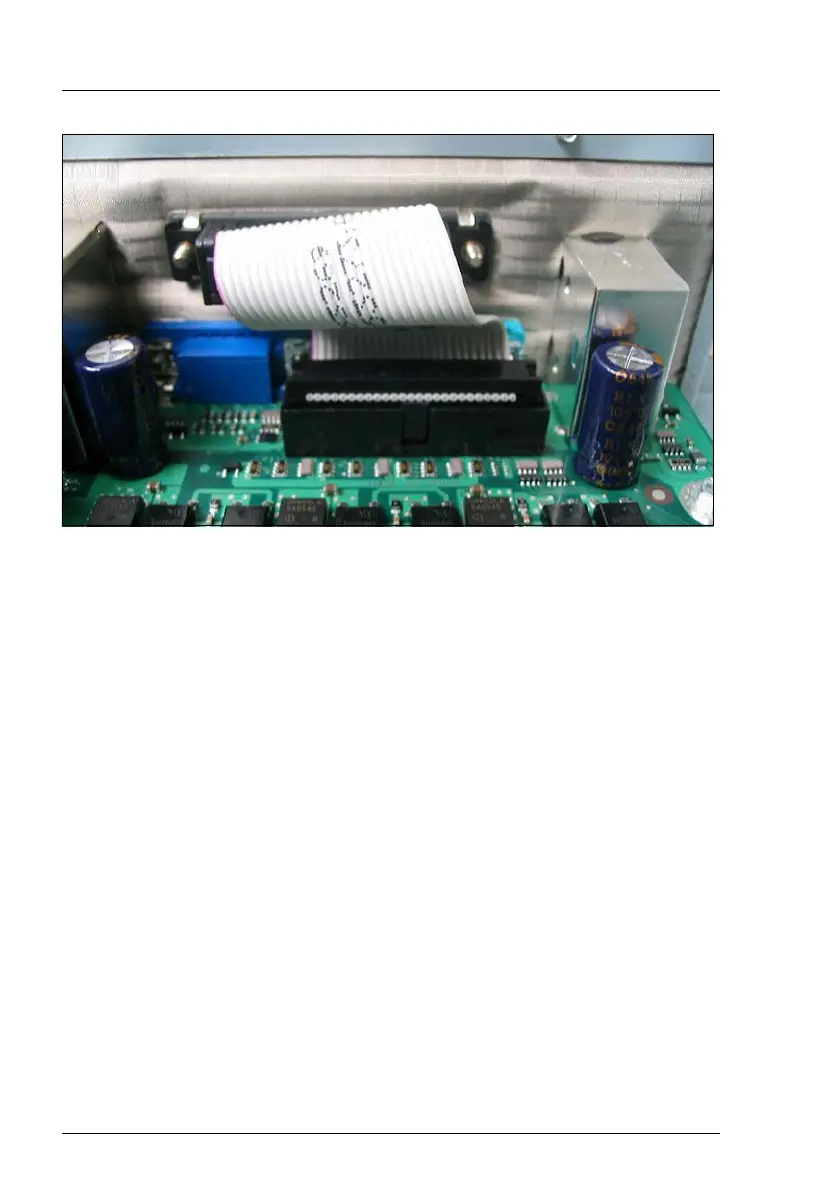

Figure 51: Routing the cable
Ê Route the cable as shown in the photo.
Ê Connect the cable’s connector to the parallel port connector on the system
board.
Ê Reinstall the system fan holder. The proper holder position can best be
judged from the outside at the rear side of the server. When doing so, make
sure the holder lock bar engages properly.
Ê Connect the fan cable to the connector FAN1 SYS on the system board.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 85 et seq..
