80 Options Guide TX150 S6
Conversion from a floorstand model to a rack model

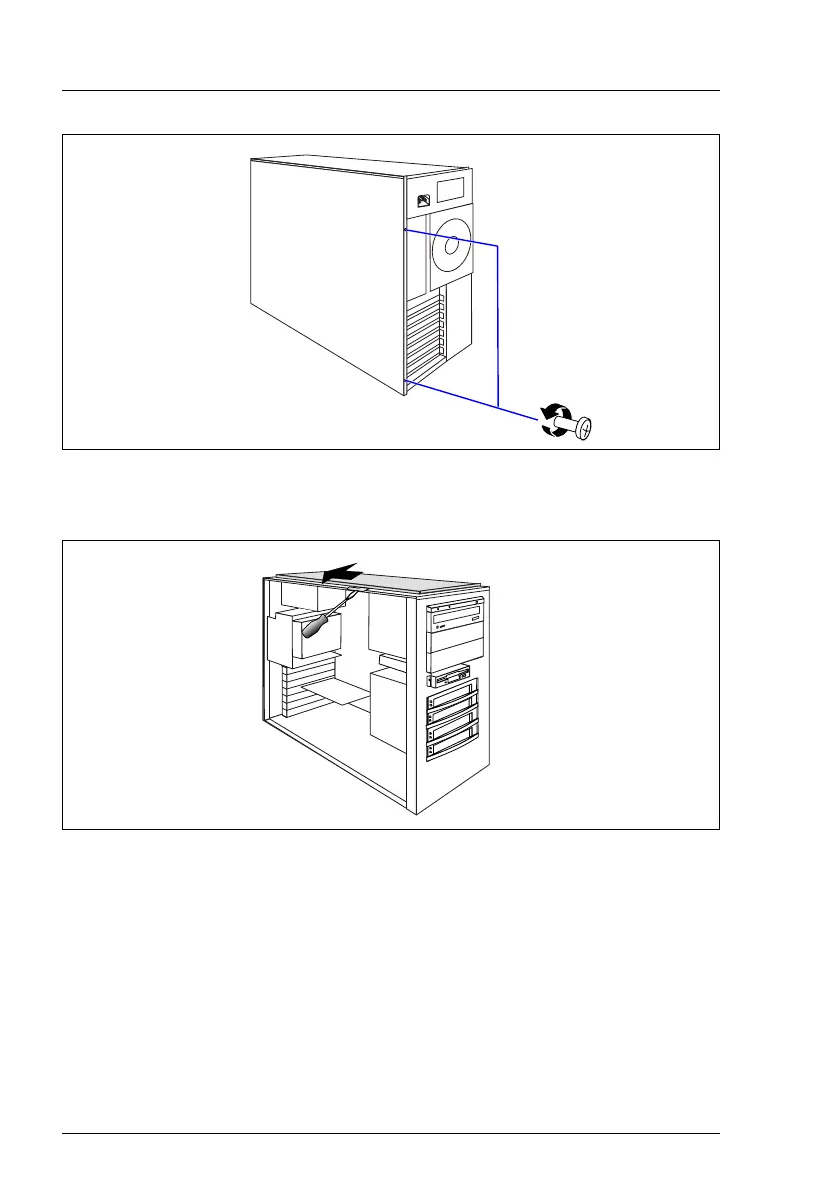

Figure 64: Removing the screws
Ê Remove the two screws at the rear side.
Figure 65: Removing the right-hand side cover
Ê Lift the hook up slightly using a screwdriver.
Ê Push the right-hand side cover in the direction of the arrow.
Ê Lift off the right-hand side cover.
I The right-hand side cover is no longer required.
