TX150 S6 Options Guide 59
Expansion cards in the PCI slots Installing an expansion card

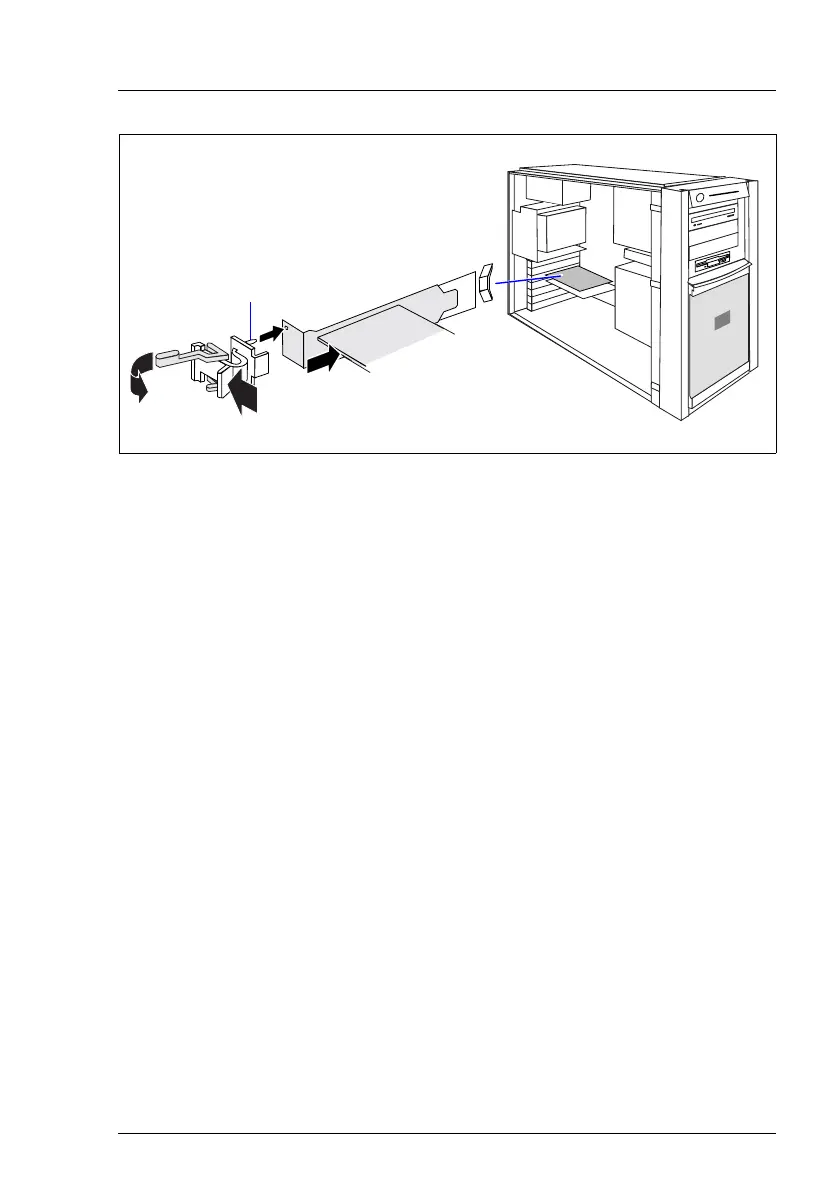

Figure 42: Installing an expansion card
Ê Install the expansion card in the PCI slot and press it carefully into the
associated plug-in location on the system board (1) until it engages properly.
Ê Place the clip on the slot cover in such a way that the pin (a) fits into the hole
of the slot cover (2), and press the clip in the direction of the arrow (3) until
it engages.
Ê Swing the lever (4) in its locking position.
Ê If necessary, connect the cables to the expansion card and the other compo-
nents.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 85 et seq..
1
2
3
4
a
