76 Options Guide TX150 S6
Conversion standard PS to hot-plug PS

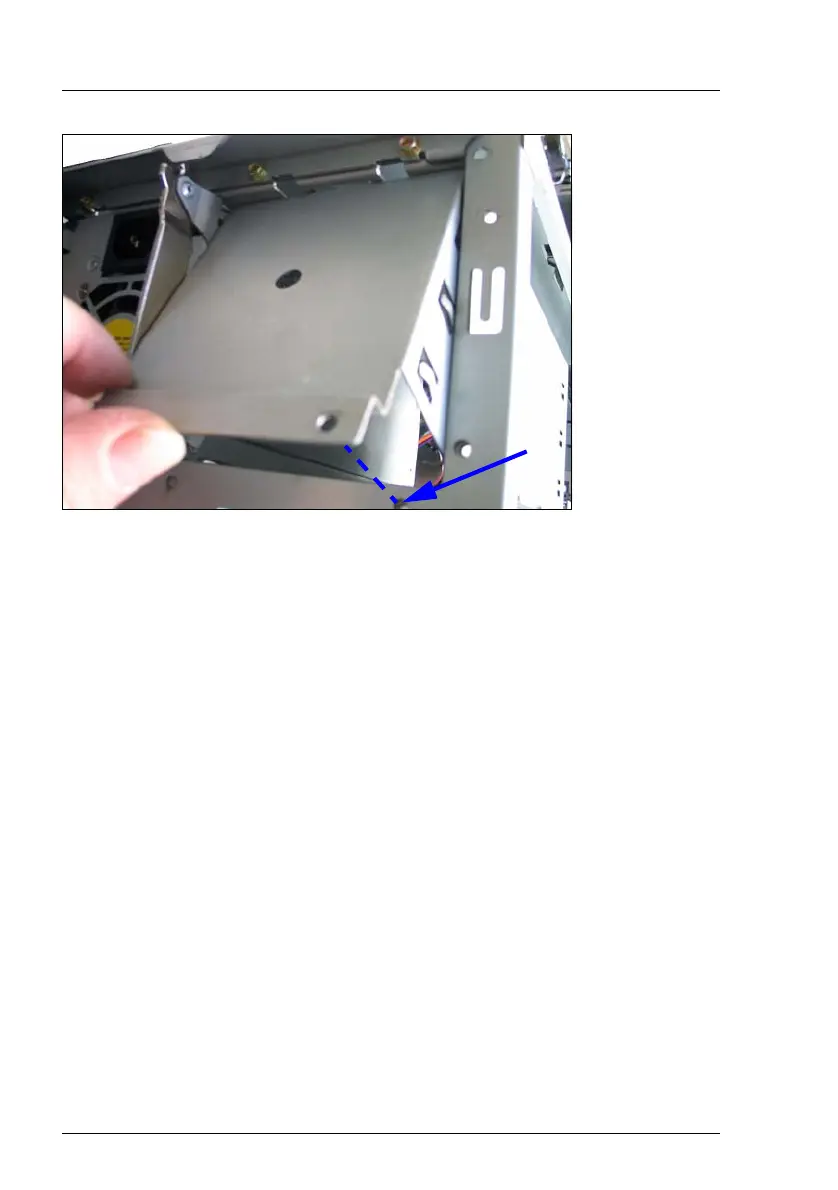

Figure 60: Installing the dummy cover
Ê If you have not ordered a second power supply module, install the dummy
cover in the second bay:
Hook the top side of the dummy cover into the chassis, after this swivel the
dummy cover down and fasten it with one screw (see the arrow) to the
housing.
V CAUTION!
For floorstand models with hot-plug power supply the supplied anti-tilt
bracket must be fitted at the rear of the server.
