82 Options Guide TX150 S6
Conversion from a floorstand model to a rack model
The drive cage for the accessible drives is constructed in such a way that the
accessible drives and the operating panel module can be taken out simply,
turned through 90° to the left, and then be reinstalled.
Ê Remove the dummy covers from the drive cage (figure 16 on page 34).
Ê Unplug the cables from the system board or the accessible drives and
remove the drives from the drive cage.
Ê Pull the operating panel module forward out of its mounting location until you
can pull the ribbon cable and the USB cable out of the operating panel
module. Remove the two cables.
Ê Remove the operating panel module.
Ê Turn the operating panel module through 90° to the left.

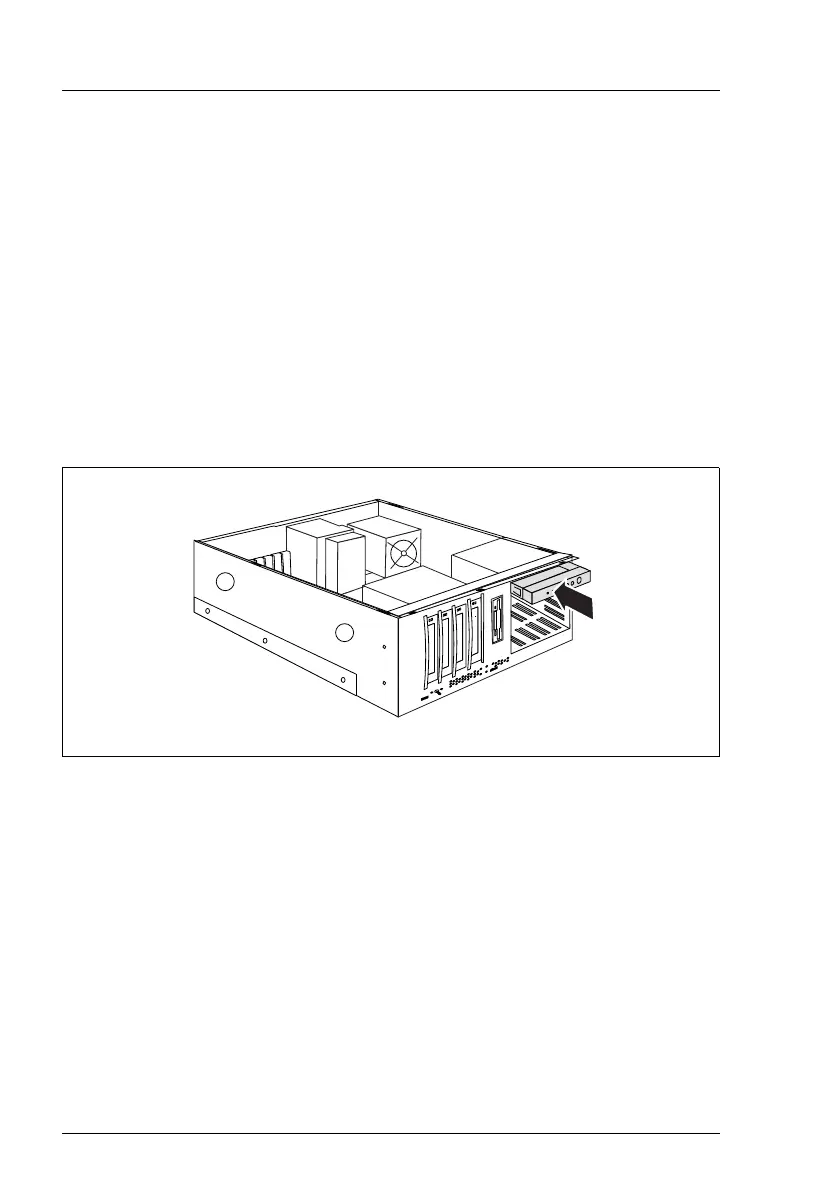

Figure 67: Installing the operating panel module
Ê Push the operating panel module halfway into the upper bay of the drive
cage.
Ê Connect the ribbon cable and the USB cable to the operating panel module.
Ê Now push the operating panel module fully into the upper bay of the drive
cage.
Ê Turn the drives removed beforehand through 90° to the left.
Ê Turn the dummy covers removed beforehand through 90° to the left.
Ê Install the drives and empty covers in the drive cage.
Ê Reestablish all connections to the drives.
