Now the extruder can be removed from the printer.
12.13.2 Installation

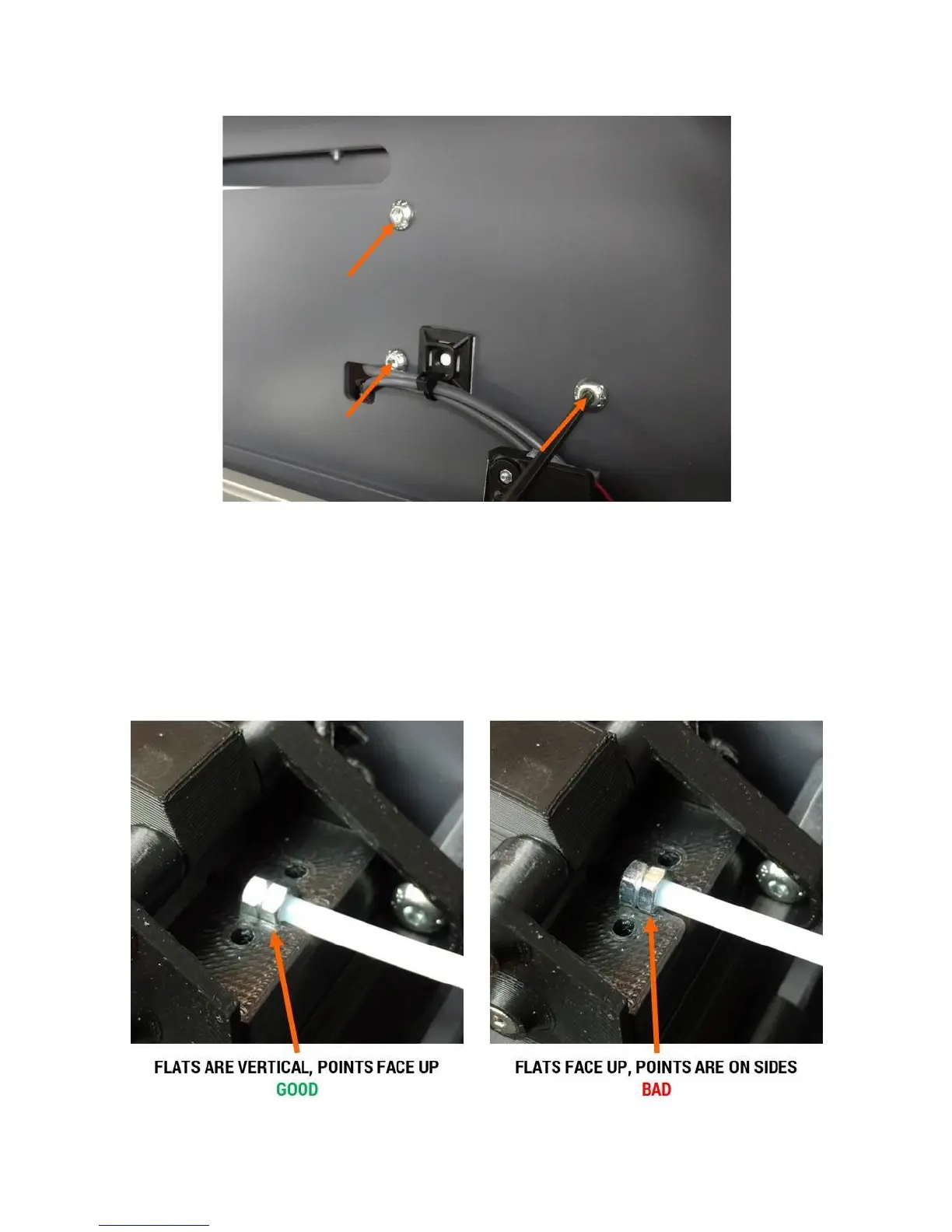

Install the 3 M5 screws that hold the extruder onto the standoffs.
Place the feed tube into the tube clamp. It’s very important that the flats on the nuts are UP and DOWN.
If the nuts are not oriented correctly the feed tube won’t line up with the filament path and the printer
will not operate correctly.
