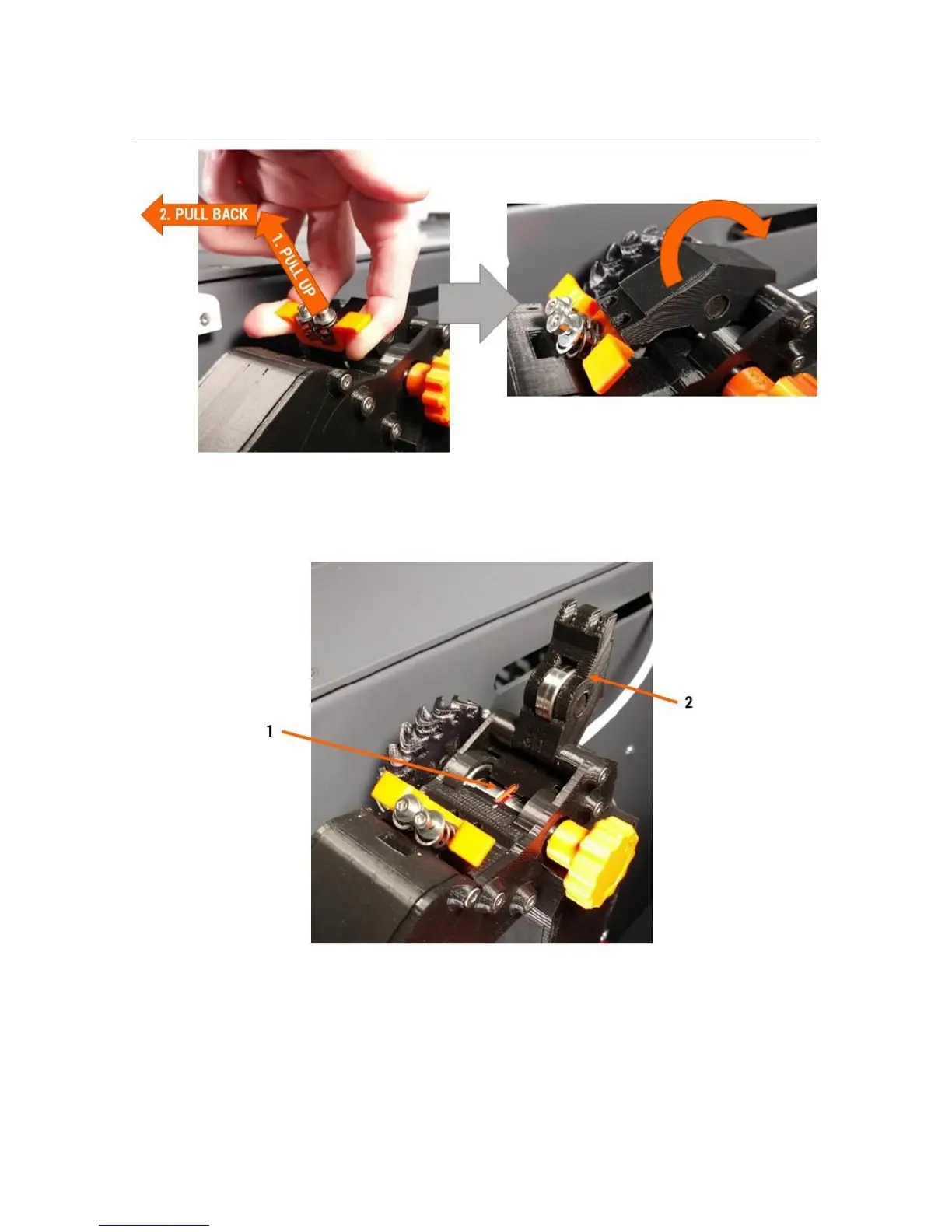

4.5.1 To Open the Idler Bar
Pull up and back (towards yourself) to disengage the springs from the idler bar.
Once the springs are disengaged you can easily open the idler bar to expose the feed gear.
1. Feed gear
2. Idler bar (in open position)
