<Before Use>

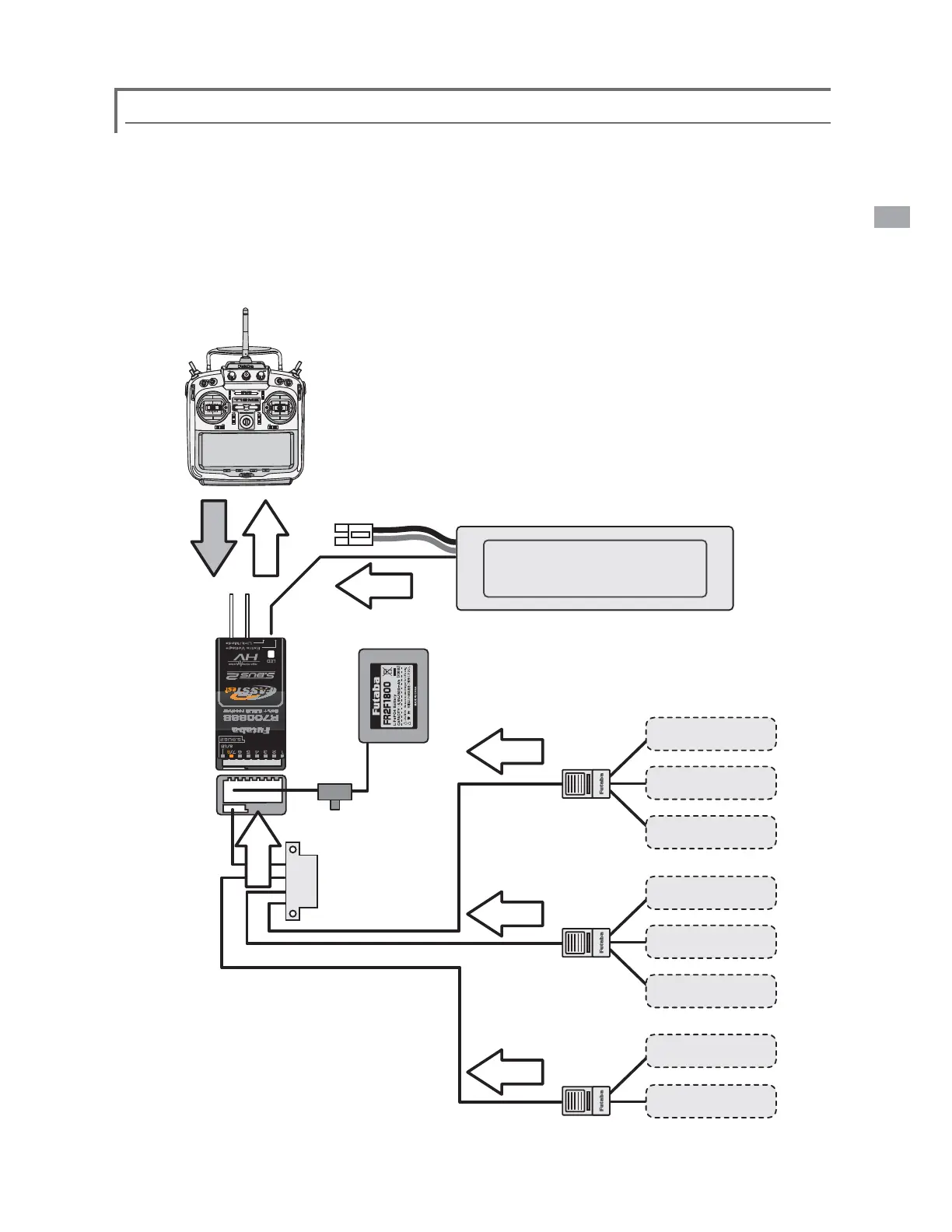

Telemetry System

S.Bus2 port. Using the S.Bus2 port an impressive array of telemetry sensors may be utilized. It also includes
both standard PWM output ports and S.Bus output ports.
*Telemetry is available only in the FASSTest 18CH mode. (12CH mode displays only Receiver battery voltage
and Extra battery voltage.)
*The telemetry function requires the corresponding receiver (R7008SB).
* Telemetry display only T18MZ ID of R7008SB was remembered to be.
6%86
&RQQHFWRU
7HPSHUDWXUH
6HQVRU
Slot1
Slot2
Slot3
Slot4
Slot5
Slot6
Slot7
Receiver
Batteryvoltageis
displayedatthetransmitter.
Drivebatteryvoltageis
displayedatthetransmitter.
6ZLWFK
70=
7HUPLQDOER[
+8%
+8%
+8%
Info
Info
Info
Info
Info
voltage
Signal
530
6HQVRU
$OWLWXGH
6HQVRU
$OWLWXGH
6HQVRU
$OWLWXGH
6HQVRU
6HQVRU
Slot8
6%867RRO
6HQVRU
●Telemetrysensor(soldseparately)
Your aircrafts data can be checked in the
transmitter by connecting various telemetry
sensors to the S.BUS2 connector of the
receiver.
●SlotNo.
Servos are classified by channel, but sensors
are classified by “slot” . Since the initial slot
No. of the T18MZ is preset at each sensor,
the sensors can be used as is by connecting
them. There are 1
~
31 slots.
Info
