Page 5-82 G1000 / GFC 700 System Maintenance Manual - 300/B300 Series King Air
Revision 4 190-00716-01
(P3301)
(P3302)

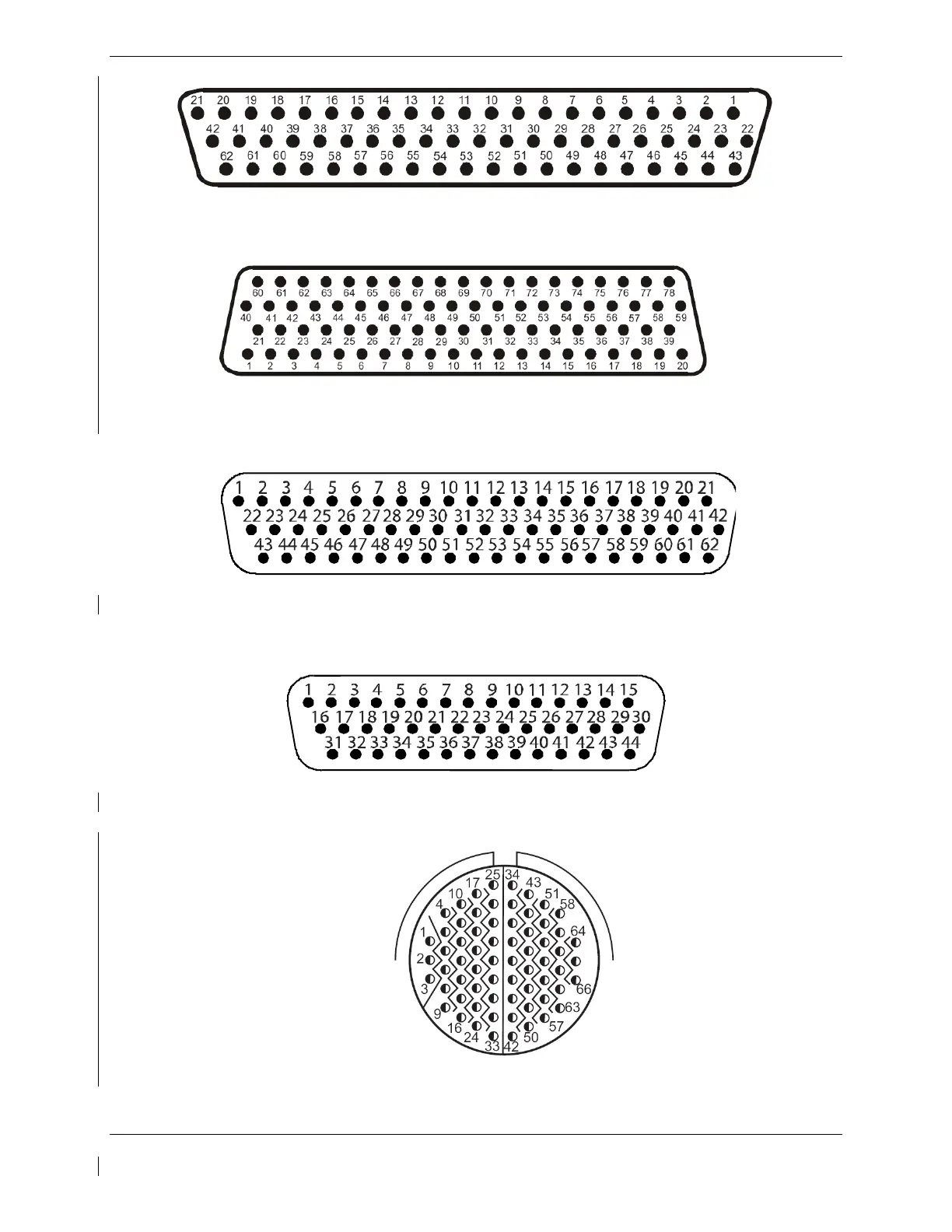

Figure 5-12, GTX 3000 Connector
Figure 5-13, GDU 1040A/1500 Mating Connector (P10401 or P15001)
Figure 5-14, GRS 77 Mating Connector (P771)
Figure 5-15, GRS 7800 Mating Connector (P78001)
