2.5 Pitot/Static System

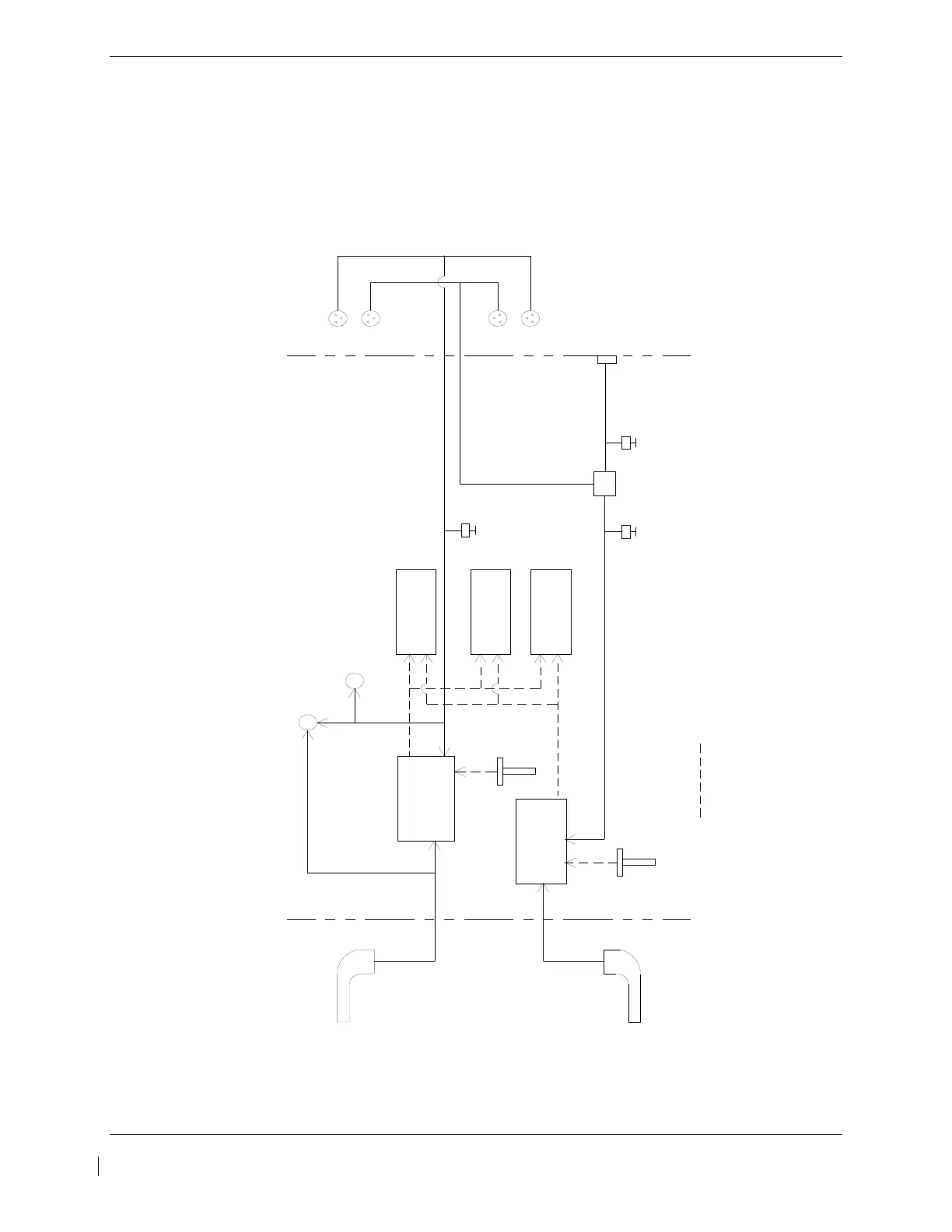

The following schematic shows the pitot-static system as modified by this installation:
DRAIN
FORWARD PRESSURE
BULKHEAD
R/H PITOT MAST
L/H PITOT MAST
#1 AIR DATA COMPUTER
#2 AIR DATA COMPUTER
STANDBY ALTIMETER
STANDBY AIRSPEED
AFT PRESSURE
BULKHEAD
TOP
BOTTOM
R/H STATIC PORTS
L/H STATIC PORTS
ALTERNATE STATIC SELECTOR VALVE
ALTERNATE STATIC PORT
COPILOT PFD
MFD
PILOT PFD
BOTTOM
TOP
DRAINDRAIN
OAT PROBE
OAT PROBE
DATA BUS
Figure 2-24, Pitot/Static System (Post G1000 STC)

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
