www.gateway.com
115

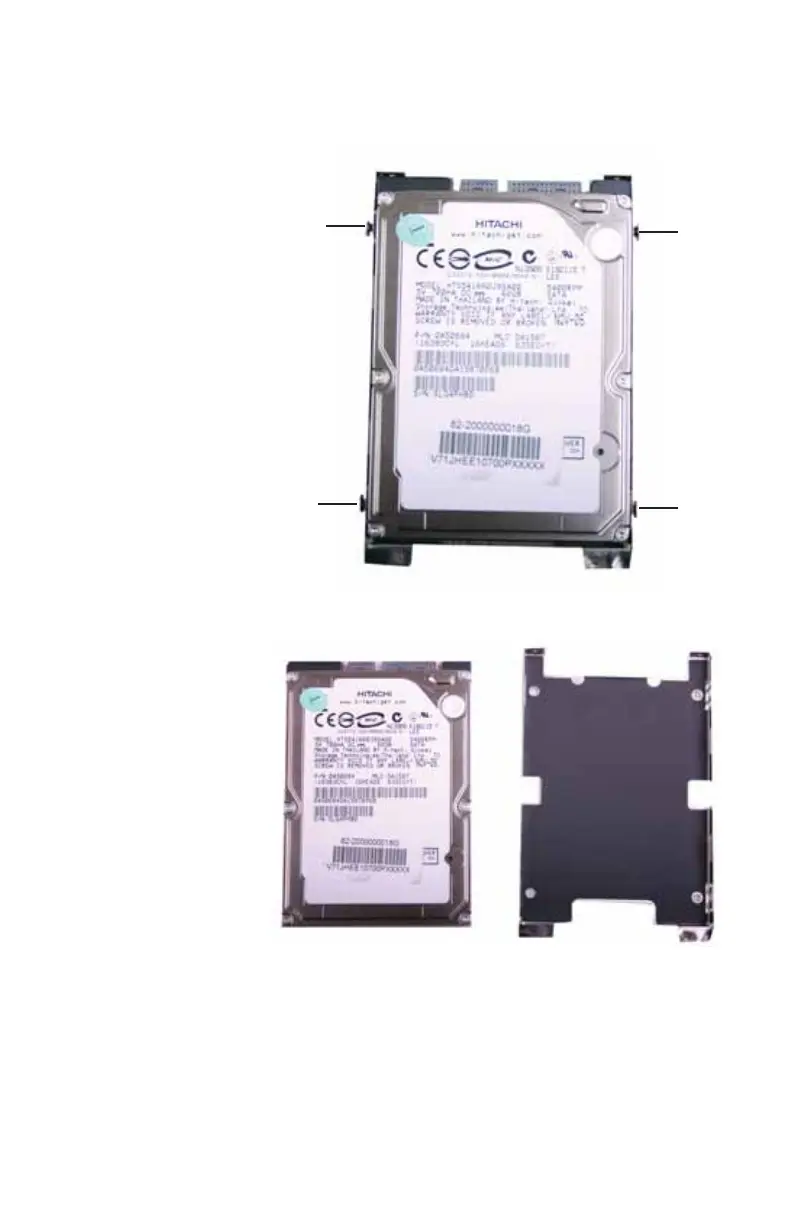

13 Remove the four screws that secure the hard drive to
the hard drive bracket.
14 Remove the bracket from the old drive.
15 Insert the new drive into the bracket, label side up, so
the screw holes line up.
16 Replace the four screws that secure the bracket to the
drive.
17 Slide the new hard drive into your convertible
notebook, then replace the screws that secure the hard
drive to your convertible notebook.
Screw
Screw
Screw
Screw
To Next Page
