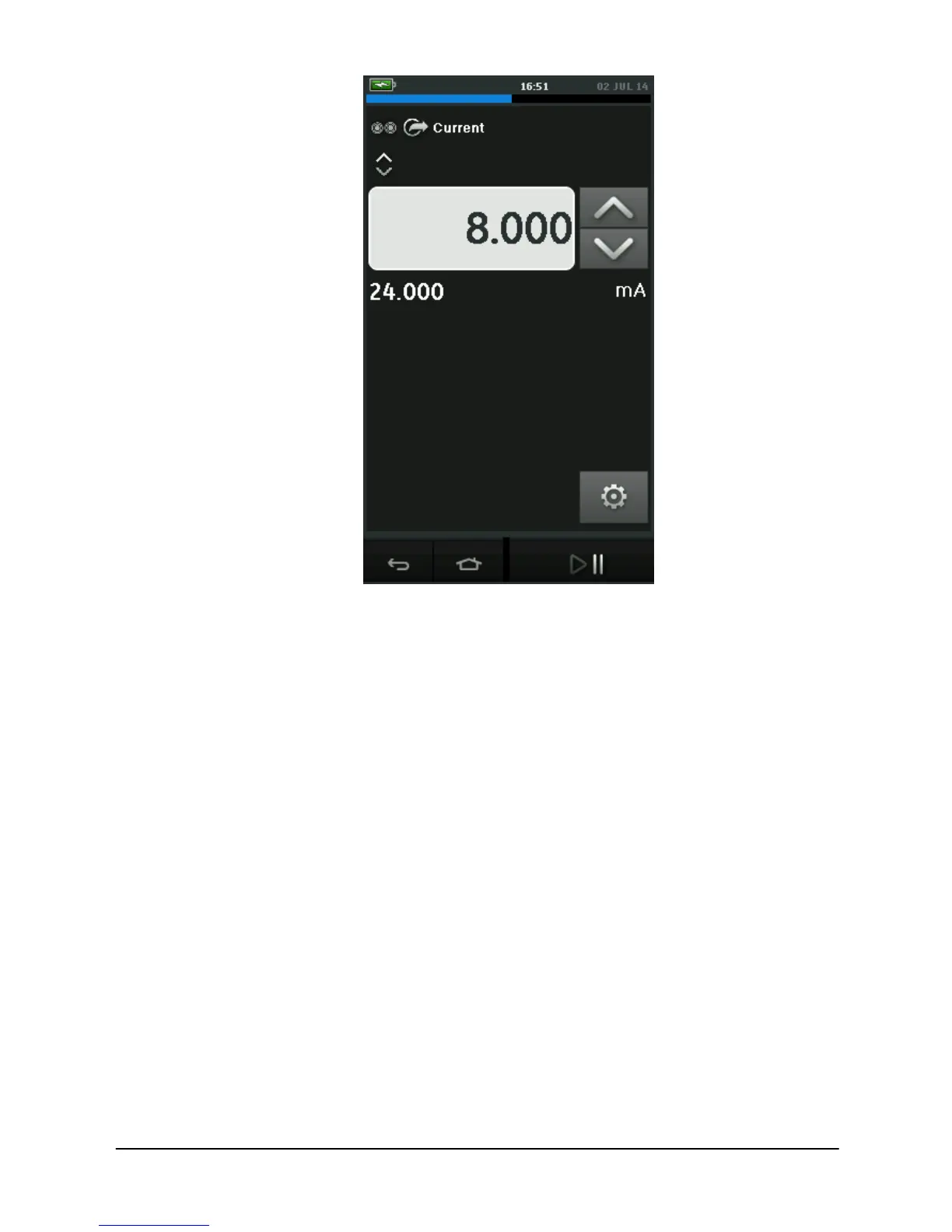

Figure 2-21 Source current with external loop power. (Range: 0 to 24 mA)
1. Set the applicable software options.
2. Complete the electrical connections and continue
with the measure or source operation.
3. Source only (Automation): Set the applicable output
value.
d. Example Procedure: Switch Test
Switch Test is only valid when a Pressure Function is
selected.
Switch operation
When setting the Switch Test, the software automatically
sets the electrical channel to the switch test function.
