GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
4-36 Section 4-8 - Mechanical Function Checks
4-8-2-1 Task Lamp Assy
Check if task lamp is operated.
4-8-2-2 Keyboard Front Grip
• Check if the keyboard front grip is fastened so that it won't move.
• Check if the keyboard front grip can not be removed easily.
4-8-2-3 Probe holder
• Check if the probe holder is fastened so that it won't move.
• Check if the probe holder can not be removed easily.

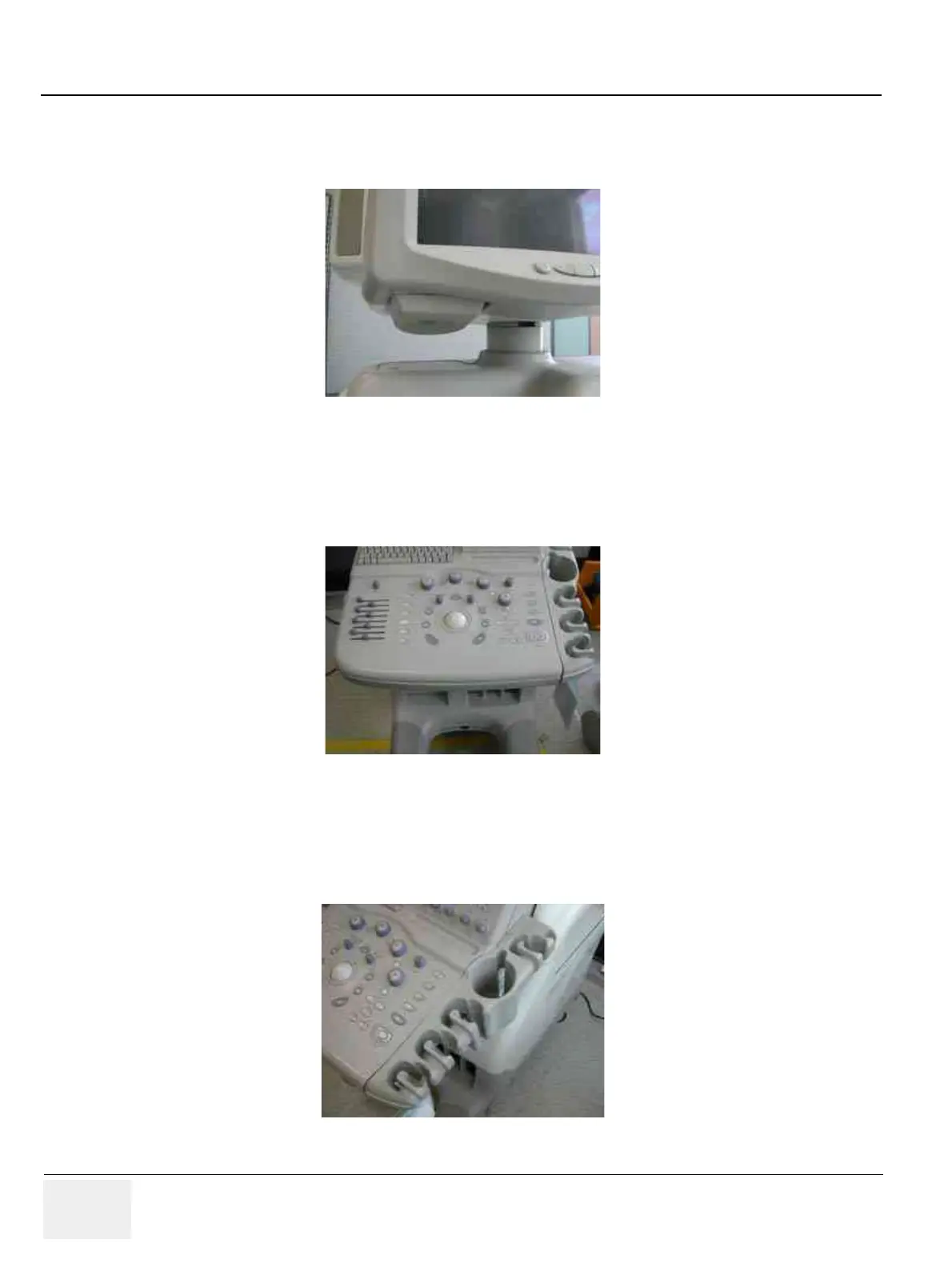

Figure 4-33 Task Lamp Assy
Figure 4-34 Keyboard Front Grip
Figure 4-35 Probe holder
