1
LO
GIQ™ 5 S
ERVICE
M
ANUA
L
5 - 40
Section 5-10 - Serv
ice Platform
5-10-6
Image Quality
The
Image Qual
ity
page is intended to contain tools fo
r troubleshooting image quality issues.
5-10-7
Calibration
The
Calibr
ation
page is intended to contain the tools use
d to calibrate the system.

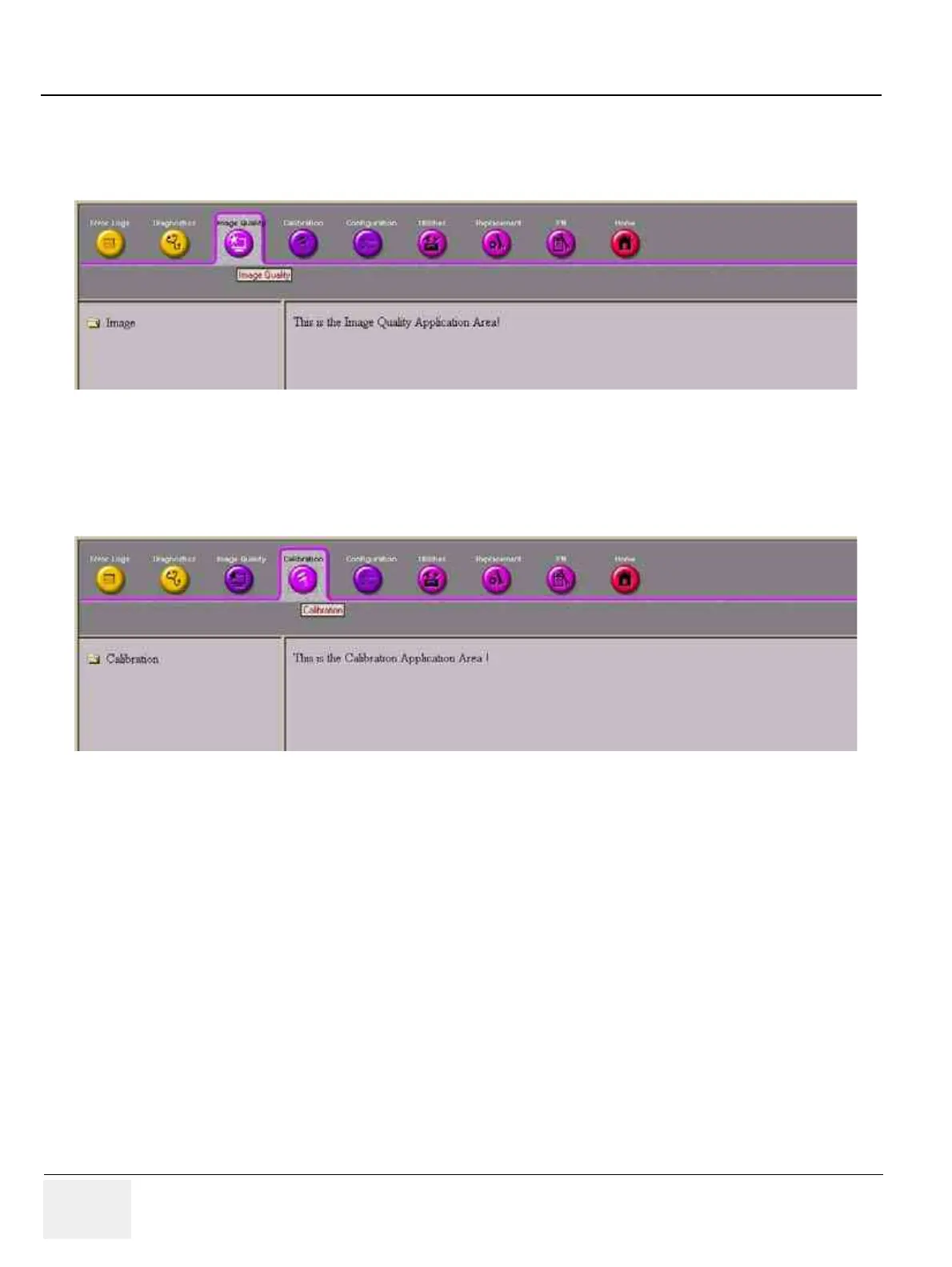

Figure 5-34 Image Quality Page
Figure 5-35 Calibration Page
167
169
Table of Contents
Table of Contents
7
Introduction
17
Overview
17
Purpose of Chapter 1
17
Purpose of Service Manual
17
Typical Users of the Basic Service Manual
18
LOGIQ™ 5 Models Covered by this Manual
18
Purpose of Operator Manual(S)
18
Important Conventions
19
Conventions Used in Book
19
Product Icons
21
Introduction
23
Human Safety
23
Mechanical Safety
23
Electrical Safety
24
Lockout/Tagout Requirements (for USA Only)
28
Electromagnetic Compatibility
29
Electrostatic Discharge (ESD) Prevention
29
CE Compliance
29
Customer Assistance
30
Contact Information
30
Overview
33
Purpose of Chapter 2
33
General Console Requirements
34
Console Environmental Requirements
34
Electrical Requirements
35
EMI Limitations
37
Scan Probe Environmental Requirements
38
Facility Needs
39
Purchaser Responsibilities
39
Required Features
39
Desirable Features
40
Recommended and Alternate Ultrasound Room Layout
41
Overview
45
Purpose of Chapter 3
45
Installation Reminders
45
Average Installation Time
45
Installation Warnings
46
Moving into Position
53
Adjusting System Clock
53
Product Locator Installation Card
53
Preparing for Installation
54
Verify Customer Order
54
Physical Inspection
54
EMI Protection
54
Completing the Installation
55
Power On/Boot up
55
Power Off/ Shutdown
57
Power off / Shutdown
57
Transducer Connection
58
System Specifications
59
Electrical Specifications
62
On-Board Optional Peripherals
62
External I/O Connector Panel
63
Video Specification
66
Software/Option Configuration
67
Loading Base System Software
69
System Features
76
System B/M-Mode Checks
79
System CFM and PWD Checks
81
Basic Measurements
82
Probe/Connectors Usage
84
Using Cine
85
Image Management (QG)
85
Using the CD-RW / MOD (Magneto-Optical Drive)
86
Software Configuration Checks
93
Operator I/O Movement
106
Overview
129
Purpose of Chapter 5
129
Block Diagram
131
Front End
133
Backend Processor
142
Patient I/O (Option)
143
External I/O (Rear Panel)
146
Peripherals
147
Interconnect Cabling
153
Power Diagrams
154
Overview
154
AC Power
154
DC Power (Low Voltage)
155
Air Flow Control
158
Air Flow Distribution
158
Filters
158
Fans
159
Service Platform
160
Introduction
160
Calibration
168
Utilities
169
Replacement
170
Overview
171
Purpose of this Chapter 6
171
Regulatory
171
Power Supply Adjustment
172
Unit Disassembly
172
Adjustments Procedures
174
Reloading the Probe Data
175
Monitor and LCD Adjustments
178
Contrast and Brightness Adjustment
178
LCD Adjustment
179
Overview
183
Purpose of Chapter 7
183
Network Connectivity Troubleshooting
183
Overview
184
Collect Vital System Information
184
Check and Record the P4 Key Function
187
Setting the P4 Key to Screen Capture
187
Reset the P4 Key to Customer's Functionality
189
Utilities
191
Replacement Procedures
197
Overview
197
Purpose of Chapter 8
197
Monitor
198
CRT Assy
198
Monitor Cable Assy
201
Monitor Cover Set
203
Monitor S/W Assy
205
Speaker Assy
207
Task Lamp Assy
209
Keyboard Block
211
Keyboard Assy
211
Keyboard Front Grip
214
Probe Holder
216
ECG Cable Hook
217
OP Panel Encoder Assy
219
OP Panel TGC Assy
222
TGC Knob Set
224
OP Panel A/N Keyboard Assy
225
OP Panel Trackball Assy
227
OP Panel HUB Board Assy
229
OP Panel LCD Assy
231
Direction 2300000, Revision 2 Logiq™5 Service Manual
231
OP Panel LCD Encoder Assy
233
Covers
235
Left Cover
235
Right Cover
237
Rear Cover
239
Rear Door Cover
241
Top Cover
243
Front Base Cover
245
Front Cover
247
OP Side L Cover
248
OP Side R Cover
250
OP Rear Cover
252
OP Bottom Cover
254
OP Curtain Cover
256
EMI Cover L
258
EMI Cover R
260
Side Cap
262
Side Fringe
264
Body Block
266
Rear Handle
267
Rear Panel Assy
269
Gas Spring Assy
275
Front Caster
278
Rear Caster
280
Bumper Set
282
Air Filter Set
284
PCB Boards
285
RLY Assy
285
LMT Assy
288
Backplane
290
PCB Boards
292
DC Fan Assy
295
PC Block
297
BEP (Back End Processor) ASSY
300
SMPS Assy, Hard Disk, CD R/W
341
Power Block
349
AC Power Assy
349
Unit
352
Renewal Parts
405
Overview
405
List of Abbreviations
405
Renewal Parts Lists
405
Equipment Models Covered in this Chapter
406
Periodic Maintenance
425
Overview
425
Purpose of Chapter 10
425
Keeping Records
426
Quality Assurance
426
Special Tools, Supplies and Equipment
428
Preliminary Checks
429
Input Power
431
Cleaning
431
Physical Inspection
432
Probe Maintenance
433
Using a Phantom
434
Electrical Safety Tests
434
Safety Test Overview
434
Grounding Continuity
438
Isolated Patient Lead (Source) Leakage-Lead to Ground
440
Isolated Patient Lead (Source) Leakage-Lead to Lead
441
