GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-13
8-3-6 Task Lamp Assy
Purpose: This is a description on how to remove and replace the Task Lamp Assy.
8-3-6-1 Tools
Common pillips screwdrivers
8-3-6-2 Needed Manpower
1person, 5 minutes + travel
8-3-6-3 Preparations
Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
Monitor Cover Set should be removed before proceed. For more information Refer to section 8-3-
3 on page 7.
8-3-6-4 Removal Procedure
1.) Unscrew two (1-2) screws to remove the TaskLamp Cover. Refer to Figure 8-15.

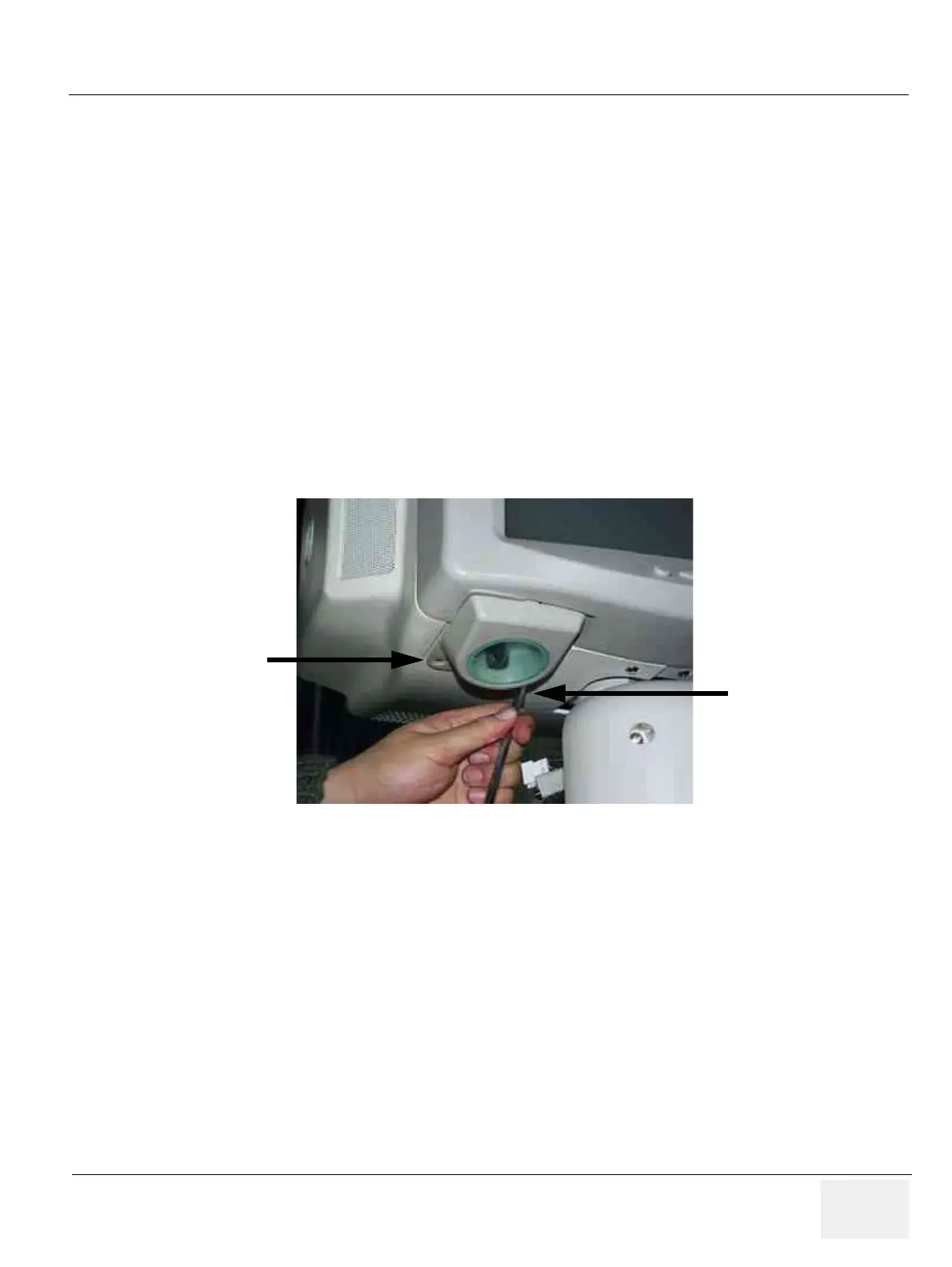

Figure 8-15 Removing Task Lamp Cover
1
2
